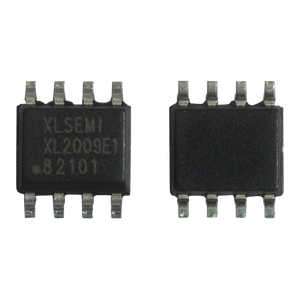

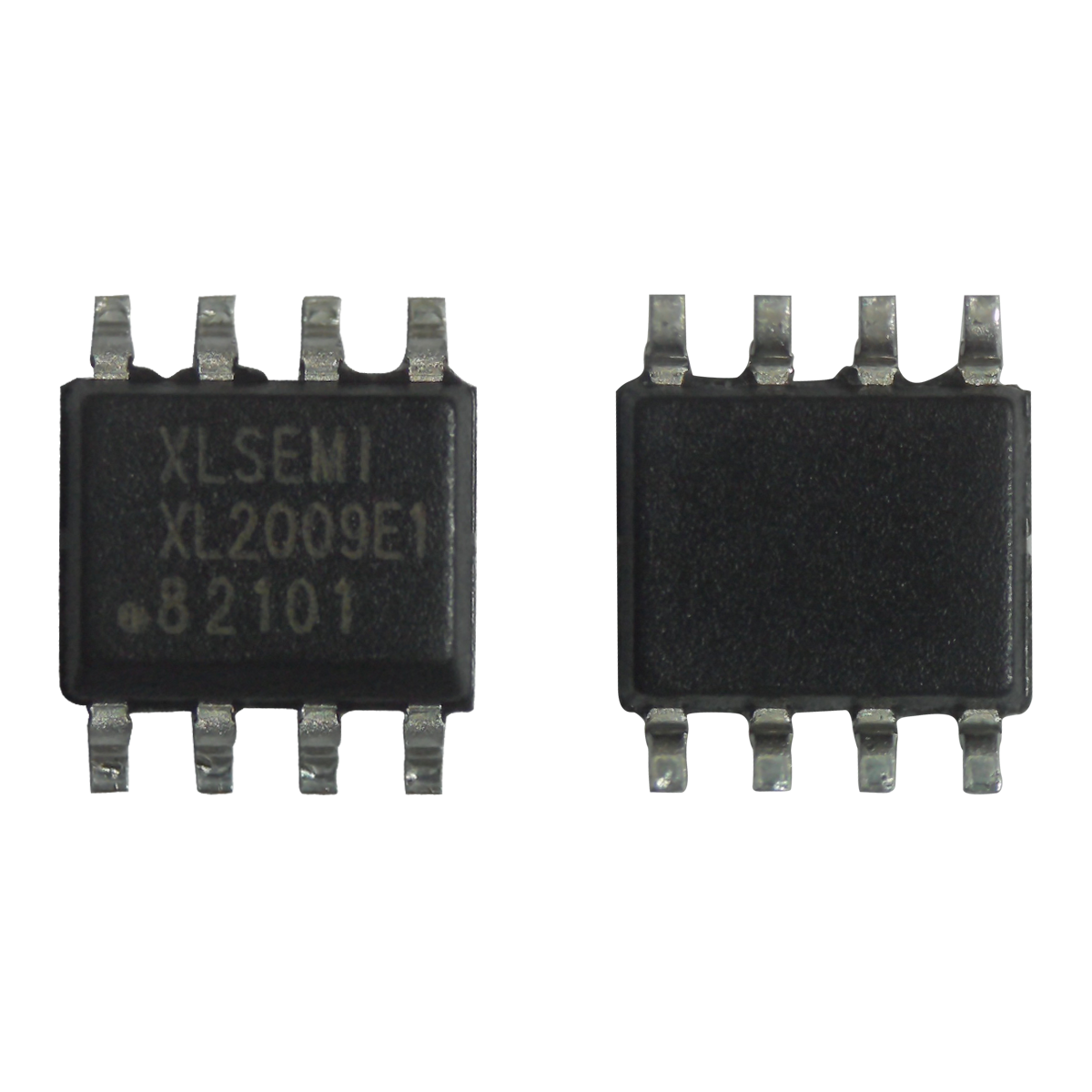

XL2009E1 2009E1 SOP8

Description:

The XL2009 is a 180 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator.

Features:

  • Wide 8V to 36V Input Voltage Range
  • Output Adjustable from 1.25V to 32V
  • Maximum Duty Cycle 100%
  • Minimum Drop Out 0.3V
  • Fixed 180KHz Switching Frequency
  • Maximum 3A Switching Current
  • Internal Optimize Power MOSFET
  • High efficiency
  • Excellent line and load regulation
  • With output constant current loop
  • Built in thermal shutdown function
  • Built in current limit function
  • Built in output short protection function
  • Available in SOP8L package

Datasheet:

https://bit.ly/2Kmlw1p
