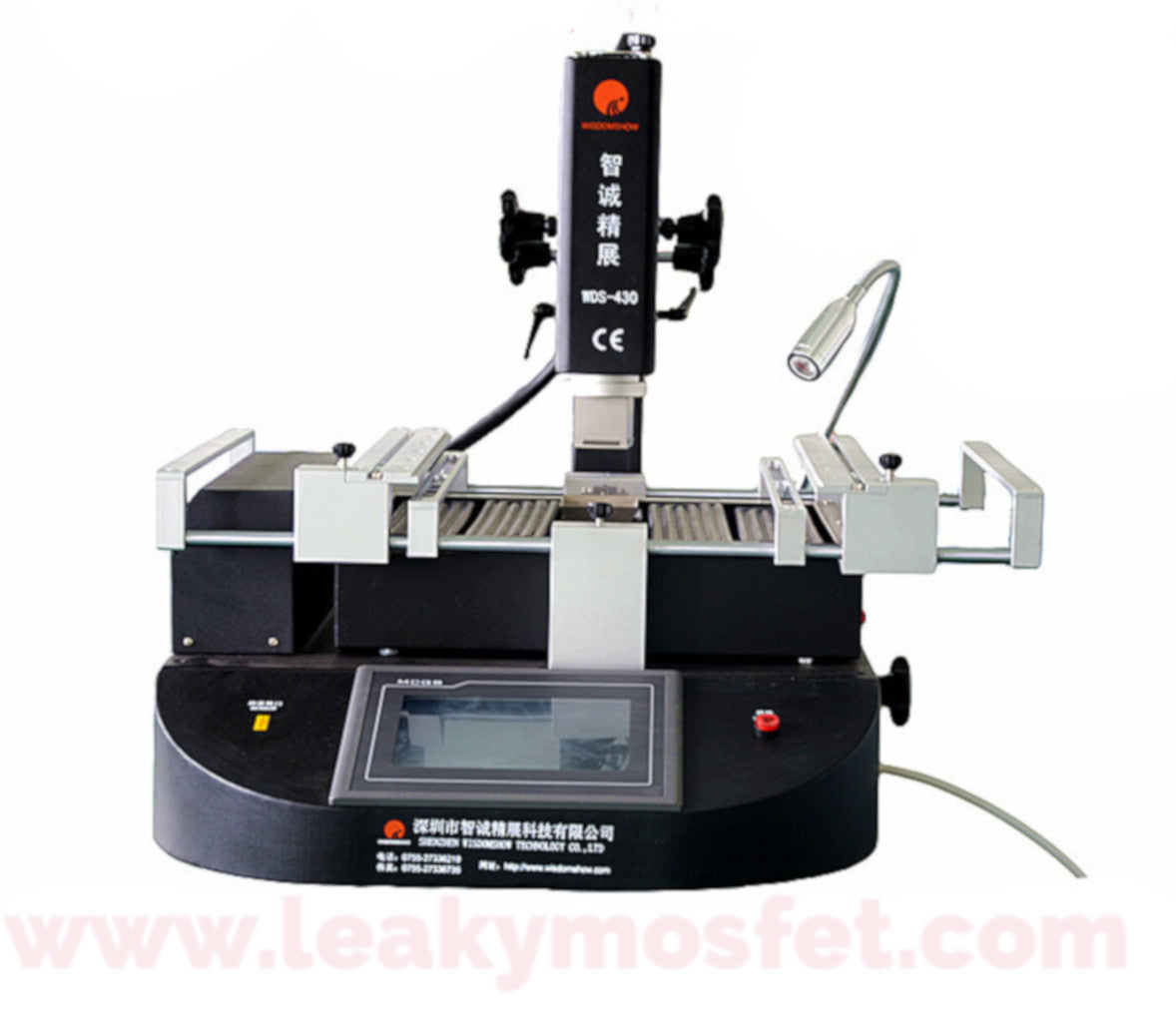

WDS-430 BGA Machine

 WDS-430 BGA Rework Station w/ consultation and training. w/ free training which includes proper reballing of BGA, lifting and attaching of BGA chips. Message us for more information.

Features:

  • Hot selling manual bga rework station with touch screen,100% success rate
  • 3 temperature zones, top heater, bottom heater, pretheating zone
  • USB Ports
  • Top air flow adjustable
  • 7 high definition touch screen, easy to operate and conrtol
  • Support 7 temperature profiles
  • Programmable PLC controller
  • Emergency stop buttom
  • With vacuum pen,easy to take chips out
  • With LED light
  • Operation interface can be English,  Spanish,  Portuguese,etc
  • Automatic force air cooling.
  • CE ISO9001 approval.

Specifications:

  • Total Power - 4000W
  • Nozzle of upper(HR) - 4pcs: 19x19, 29x29, 34x34, 37x37 mm
  • Consumption of upper (HR) - 800W
  • Bottom Heating - Hot Air
  • Nozzle of bottom(HR) - 1 pcs: 50x50 mm
  • Consumption of bottom (HR) - 800W
  • Bottom Preheater - IR
  • Consumption of preheat (IR) - 2400W
  • Temperature Control
    • Upper - Independent temperature control, high-precision closed-loop
      control, precision ± 0.5%, Alarm
    • Bottom - Independent temperature control, high-precision closed-loop
      control, precision ± 0.5%, NO Alarm
  • Rework Function
    • SMD - Suit for welding, remove or repair packaged devices
      such as BGA,PBGA,CSP, multi-layer substrates, EMI
      metallic shield product and solder/lead-free rework welding
    • Size of Applicable Chips ≤ 80mm x 80mm
    • Size of PCB - 10mm x 10mm (min), 350mm x 400mm (max)

Shipping:

DHL, 10-15 days (Customs delays not included)

Packing List:

  • 4 x Titanium alloy hot air nozzle
  • 1x Brush
  • 6 x Plum Handle
  • 6 x Universal fixtures
  • 1 x User Manual
