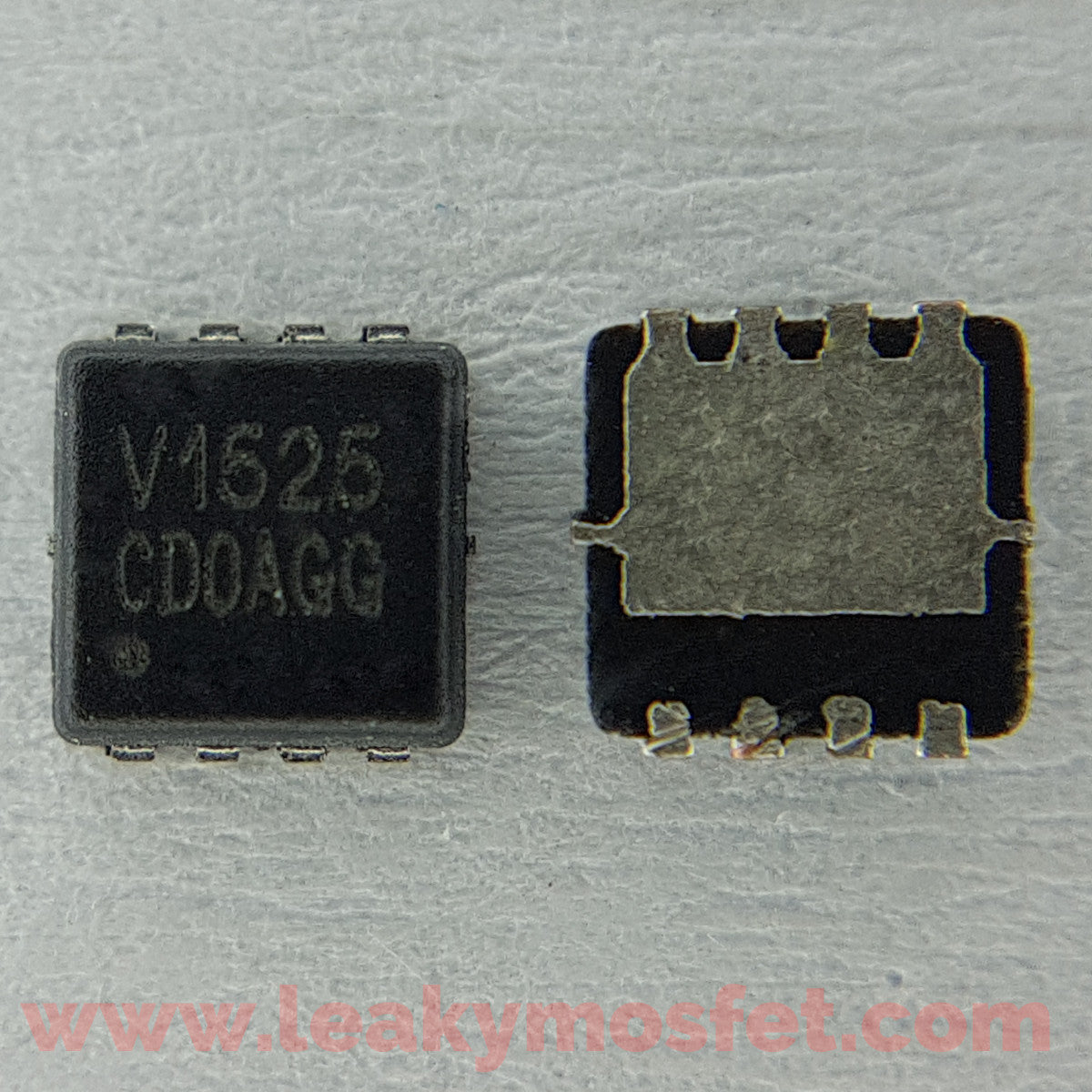

MDV1525 V1525 1525 Single N-Channel MOSFET DFN3x3
₱350.00
Brand new MDVV1525 DFN
The MDV1525 uses advanced MagnaChip’s MOSFET Technology, which provides high performance in on-state resistance, fast switching performance and excellent quality. MDV1525 is suitable for DC/DC converter and general purpose applications.
Features:
- VDS = 30V
- ID = 24A @VGS = 10V
- RDS(ON) < 10.1mΩ @VGS = 10V < 14.0mΩ @VGS = 4.5V
- 100% UIL Tested
- 100% Rg Tested
Datasheet:
http://www.magnachip.com/userfiles/PowerSolutions/MDV1525.pdf
