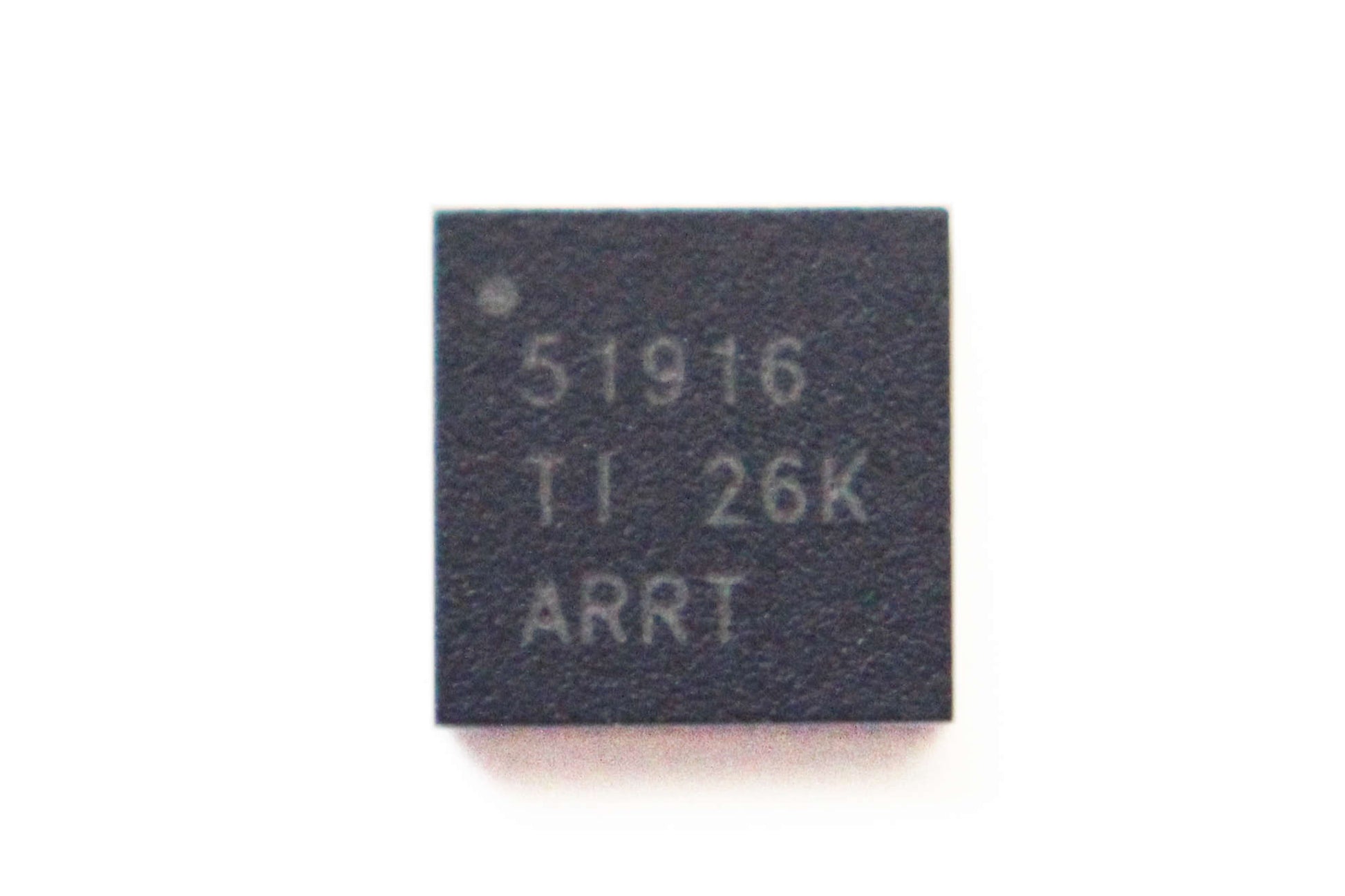

TPS51916

Description

The TPS51916 device provides a complete power
supply for DDR2, DDR3, DDR3L, and DDR4 memory
systems in the lowest total cost and minimum space.
It integrates a synchronous buck regulator controller
(VDDQ) with a 2-A sink and 2-A source tracking LDO
(VTT) and buffered low noise reference (VTTREF)

Features
1• Synchronous Buck Controller (VDDQ)
– Conversion Voltage Range: 3 V to 28 V
– Output Voltage Range: 0.7 V to 1.8 V
– 0.8% VREF Accuracy
– Selectable Control Architecture
– D-CAP™ Mode for Fast Transient
Response
– D-CAP2™ Mode for Ceramic Output
Capacitors
– Selectable 300 kHz, 400 kHz, 500 kHz, or
670 kHz Switching Frequencies
– Optimized Efficiency at Light and Heavy Loads
with Auto-skip Function
– Supports Soft-Off in S4 and S5 States
– OCL/OVP/UVP/UVLO Protections
– Powergood Output
• 2-A LDO(VTT), Buffered Reference(VTTREF)
– 2-A (Peak) Sink and Source Current
– Buffered, Low Noise, 10-mA VTTREF Output
– 0.8% VTTREF, 20-mV VTT Accuracy
– Supports High-Z (S3) and Soft-Off (S4, S5)
• Thermal Shutdown

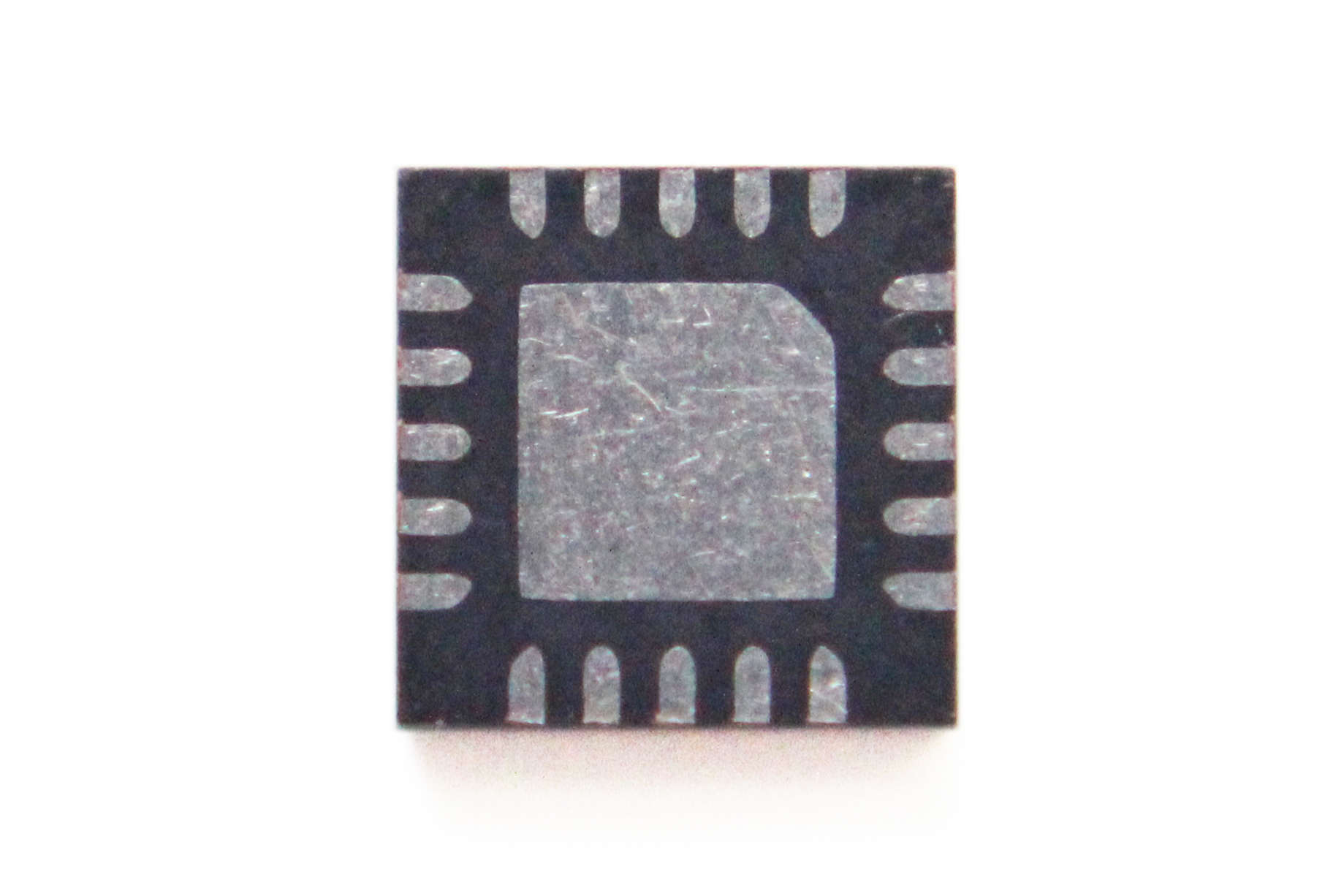

• 20-Pin, 3 mm × 3 mm, QFN Package
