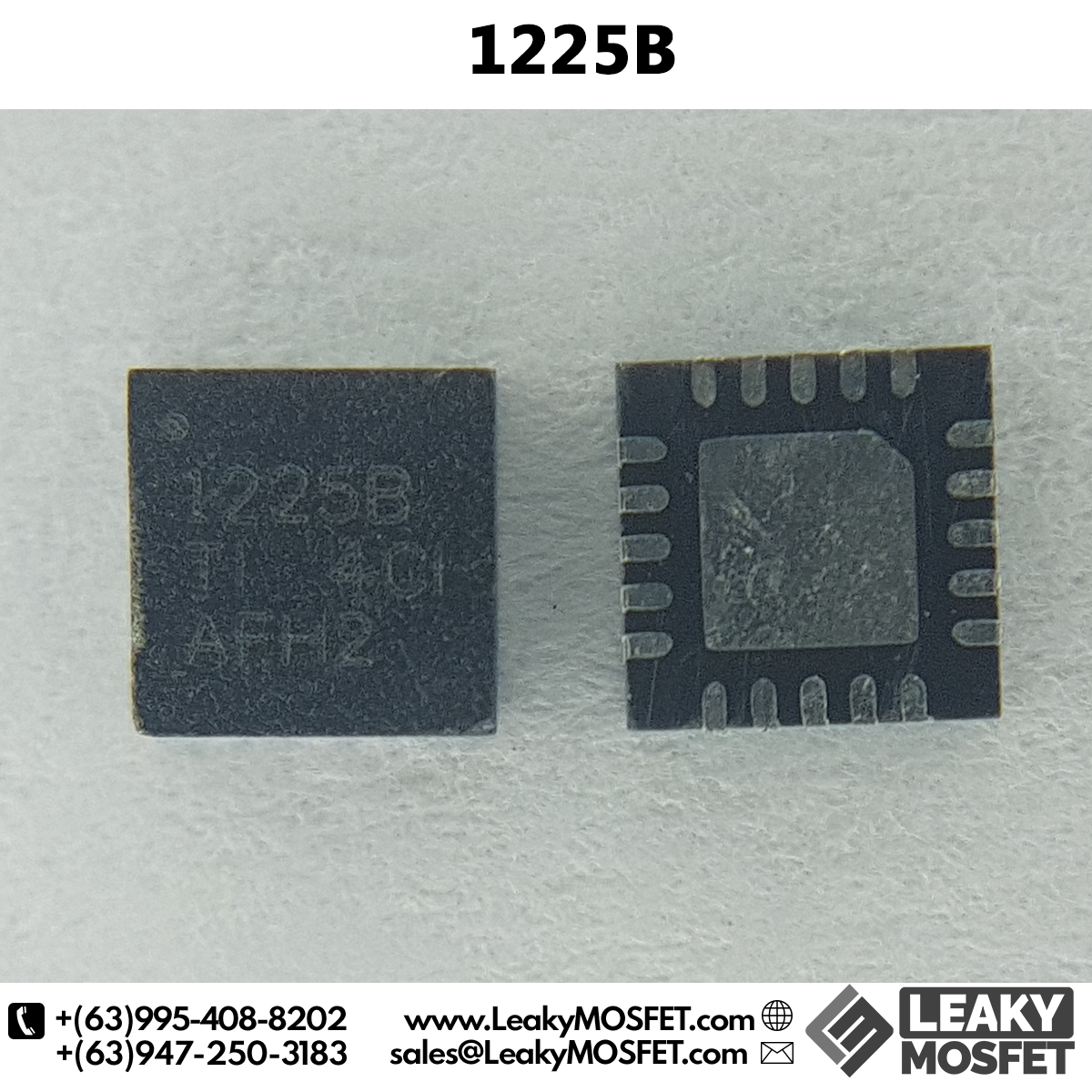

TPS51225B 51225B 51225 QFN-20

Bundle

Brand new TPS51225B

The TPS51225/B/C is a cost-effective, dual-synchronous buck controller targeted for notebook system-power supply solutions. It provides 5-V and 3.3-V LDOs and requires few external components.

The 260-kHz VCLK output can be used to drive an external charge pump, generating gate drive voltage for the load switches without reducing the main converter efficiency.

Compatibility:

TPS51275 51275

Features:

  • Input Voltage Range: 5.5 V to 24 V
  • Output Voltages: 5 V and 3.3 V (Adjustable Range ±10%)
  • Built-in, 100-mA, 5-V and 3.3-V LDOs
  • ±1% Reference Accuracy
  • Adaptive On-time D-CAP™ Mode Control
  • OOA Light Load Operation (TPS51225B)
  • Internal 0.8-ms Voltage Servo Soft-Start
  • Built-in Output Discharge Function
  • Separate Enable Input for Switchers
  • Dedicated OC Setting Terminals
  • Power Good Indicator
  • OVP/UVP/OCP Protection
  • Non-latch UVLO/OTP Protection
  • 20-Pin, 3 mm × 3 mm, QFN (RUK)

Datasheet:

http://www.ti.com/lit/ds/symlink/tps51225b.pdf

Keywords:
TPS 51225B


    Category: Best Seller, MAINREG, QFN-20
