BQ 24745 QFN-28

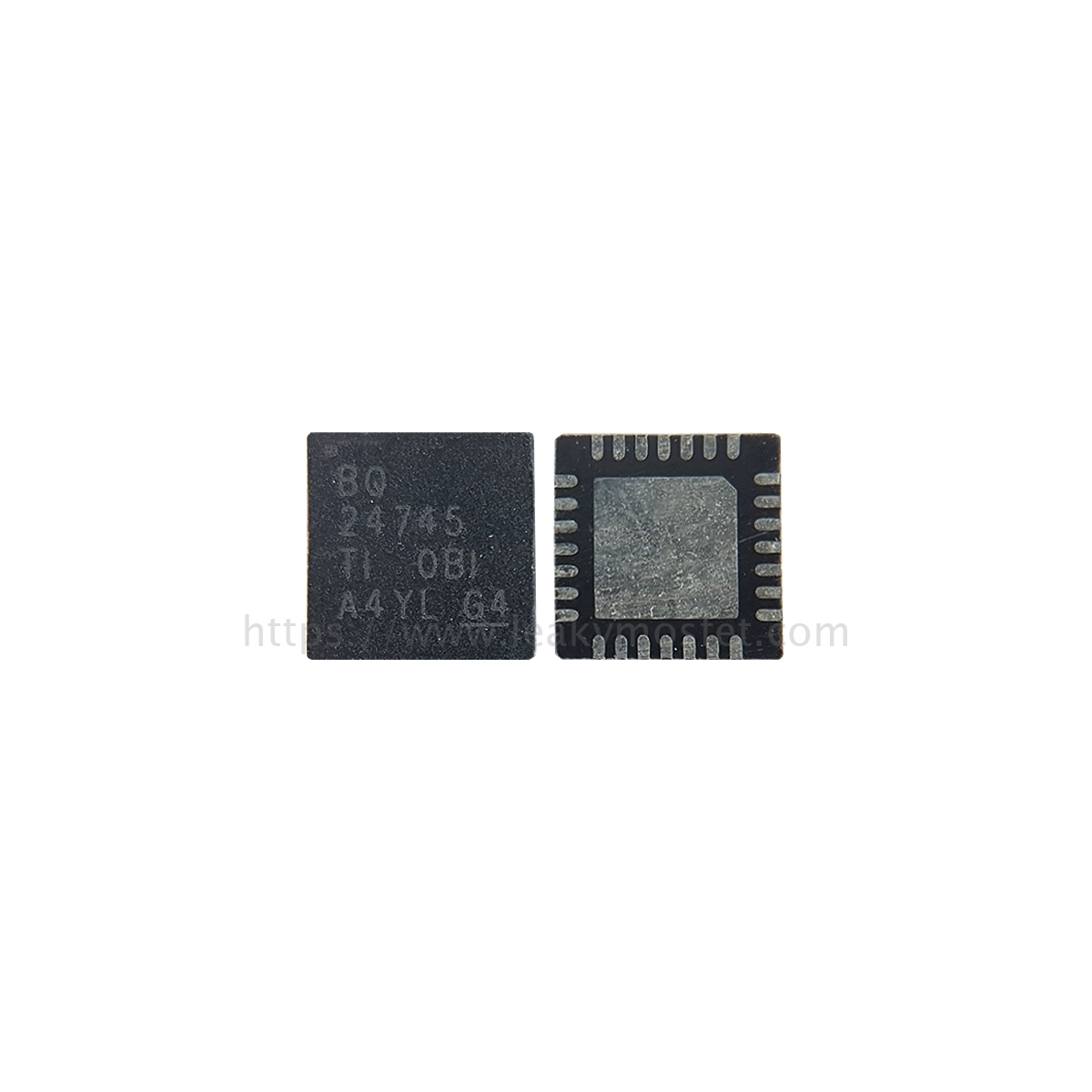

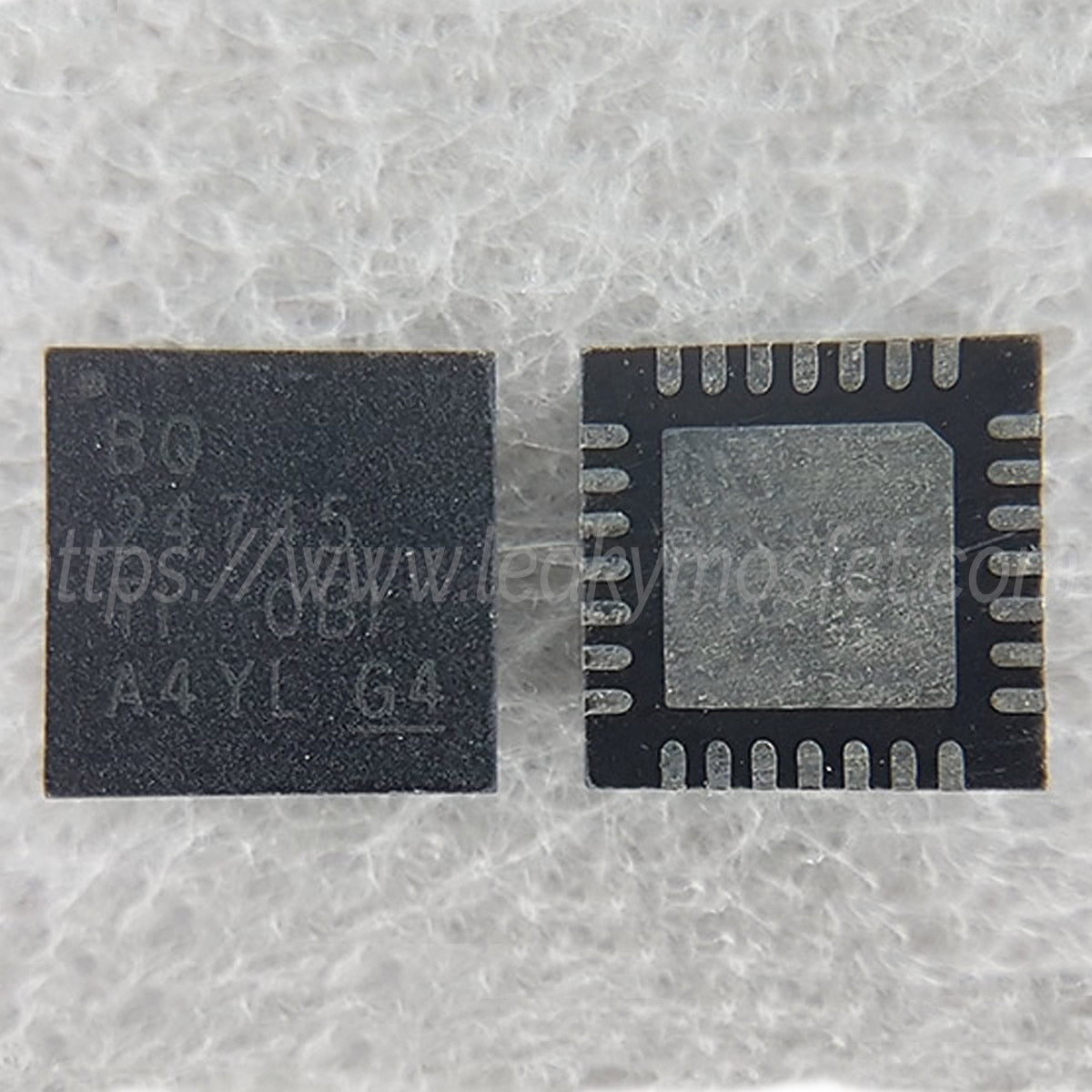

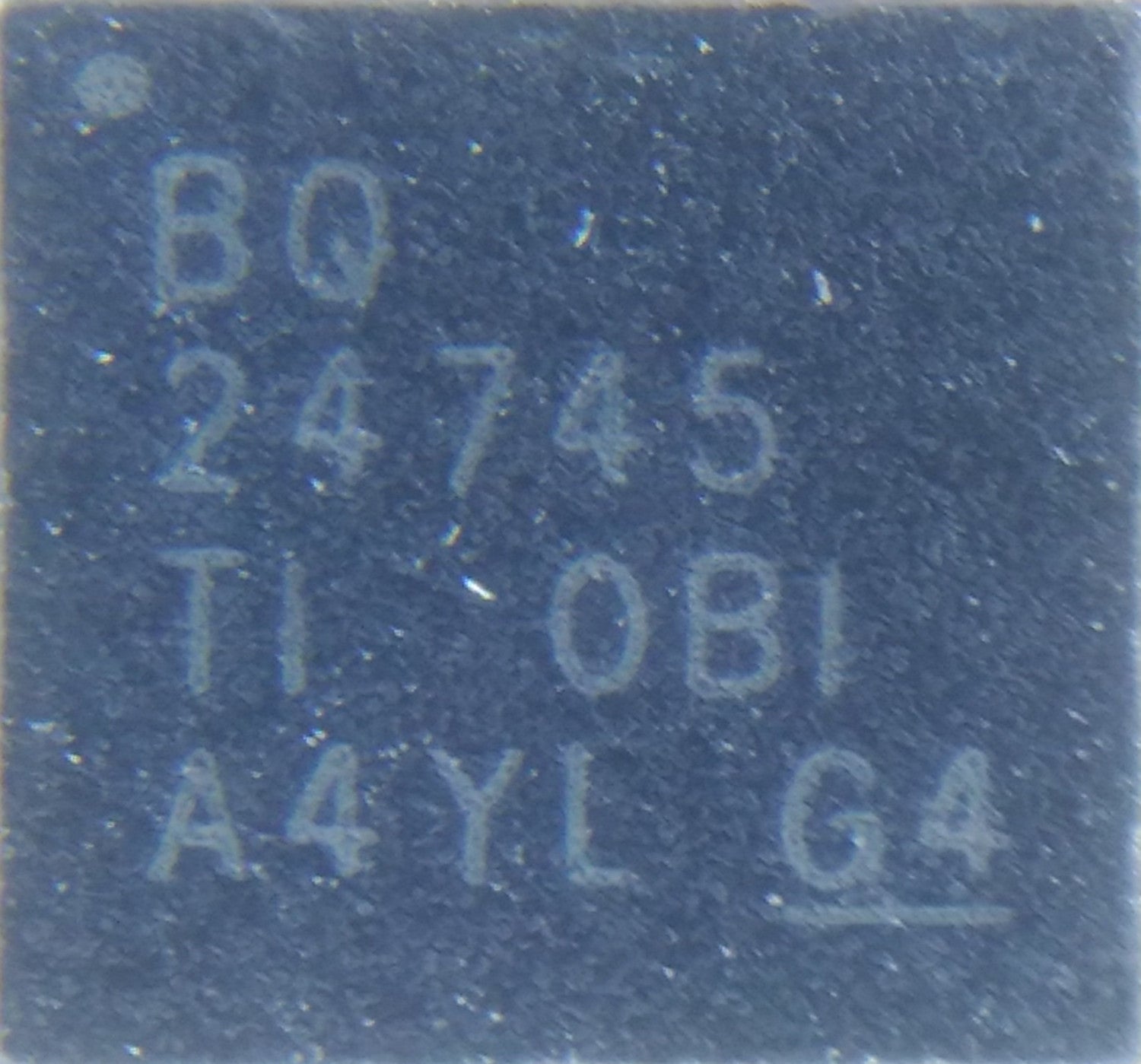

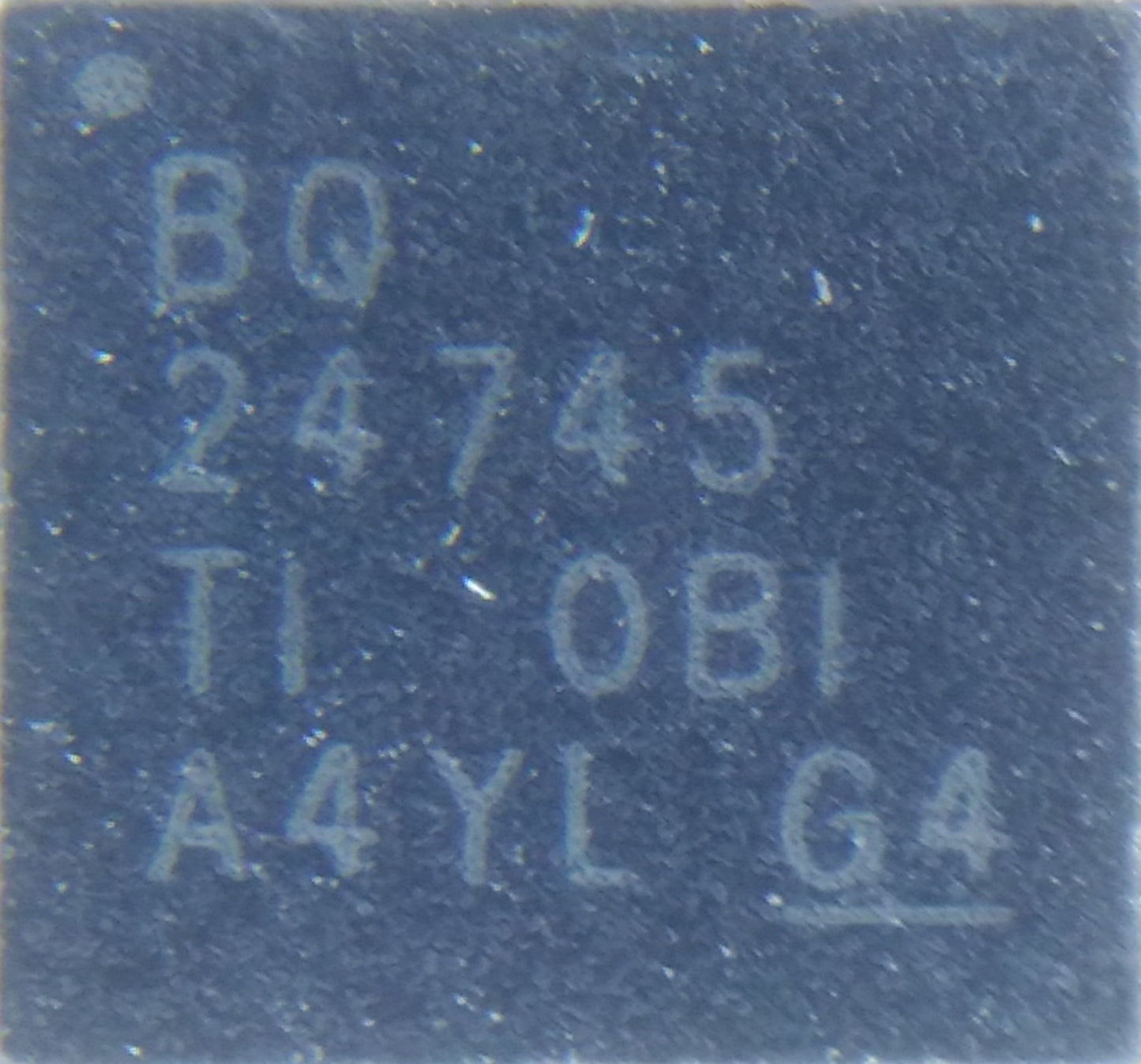

Brand new BQ24745 QFN-28

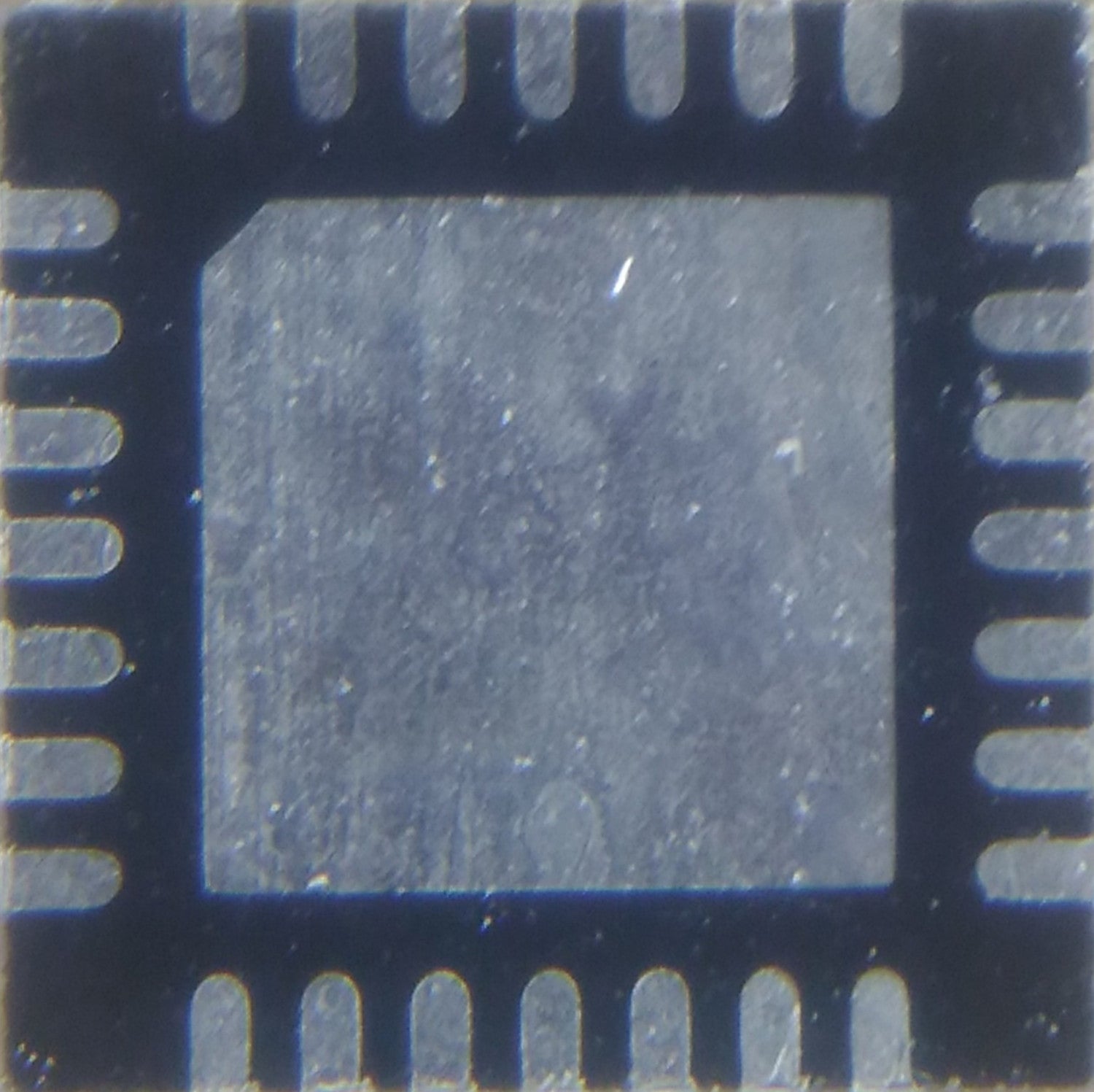

The bq24745 is a high-efficiency, synchronous battery charger with an integrated input-current comparator, offering low component count for space-constrained, multi-chemistry battery-charging applications. The input-current, charge-current, and charge-voltage DACs allow very high regulation accuracies that can be easily programmed by the system power-management microcontroller using the SMBus interface. The bq24745 charges two, three, or four series Li+ cells, and is available in a 28-pin, 5 mm QFN package.

Features:

  • NMOS-NMOS Synchronous Buck Converter with 300-kHz Frequency and >95% Efficiency
  • 30-ns Minimum Driver Dead-Time and 99.5% Maximum Effective Duty Cycle
  • High-Accuracy Voltage and Current Regulation
  • Dynamic Power Management (DPM)
  • Up to 19.2-V Battery Voltage
  • 7V–24V AC/DC-Adapter Operating Range

Datasheet:

http://www.ti.com/lit/ds/symlink/bq24745.pdf
