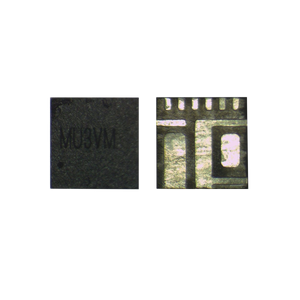

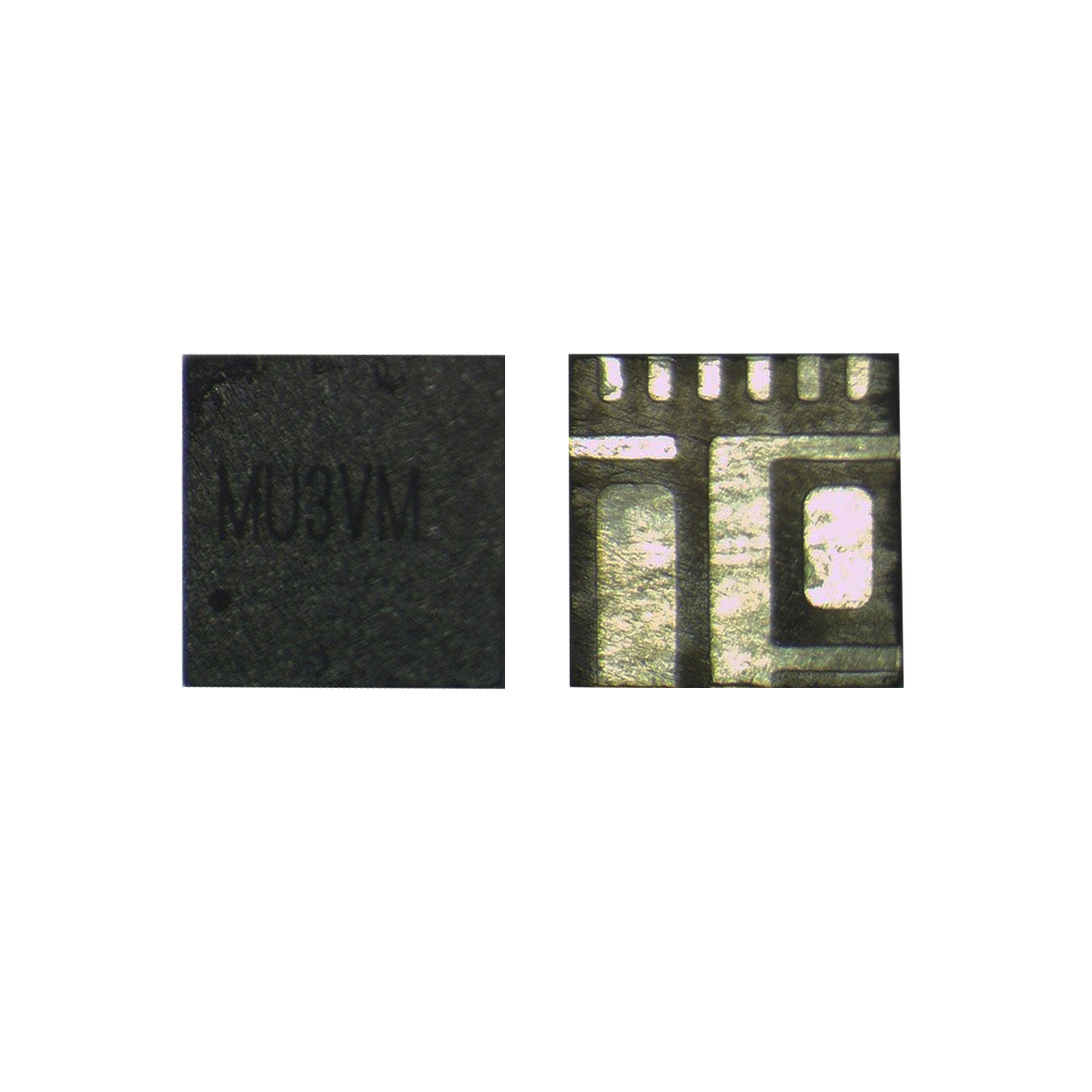

SY8208D SY 8208D

Description:

The SY8208D develops a high efficiency synchronous step-down DC-DC regulator capable of delivering 8A continuous, 16A peak current. The SY8208D operates over a wide input voltage range from 4V to 28V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. The SY8208A adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 800kHz under continuous conduction mode to minimize the size of inductor and capacitor

Features

  •  Low RDS(ON) for internal switches (top/bottom): 20/10 mΩ • Wide input voltage range: 4-28V
  •  Instant PWM architecture to achieve fast transient responses
  •  Internal 400uS softstart limits the inrush current
  •  Pseudo-constant frequency: 800kHz.
  •  8A continuous/16A peak output current capability
  •  ±1.5% 0.6V reference
  •  Programmable peak current limit
  •  Power good indicator
  •  Output discharge function
  •  Short circuit latch off protection
  •  Over voltage latch off protection
  •  Input UVLO • Over temperature protection
  •  RoHS Compliant and Halogen Free
  •  Compact package: QFN3x3-10

Datasheet:

https://bit.ly/31vX03m
