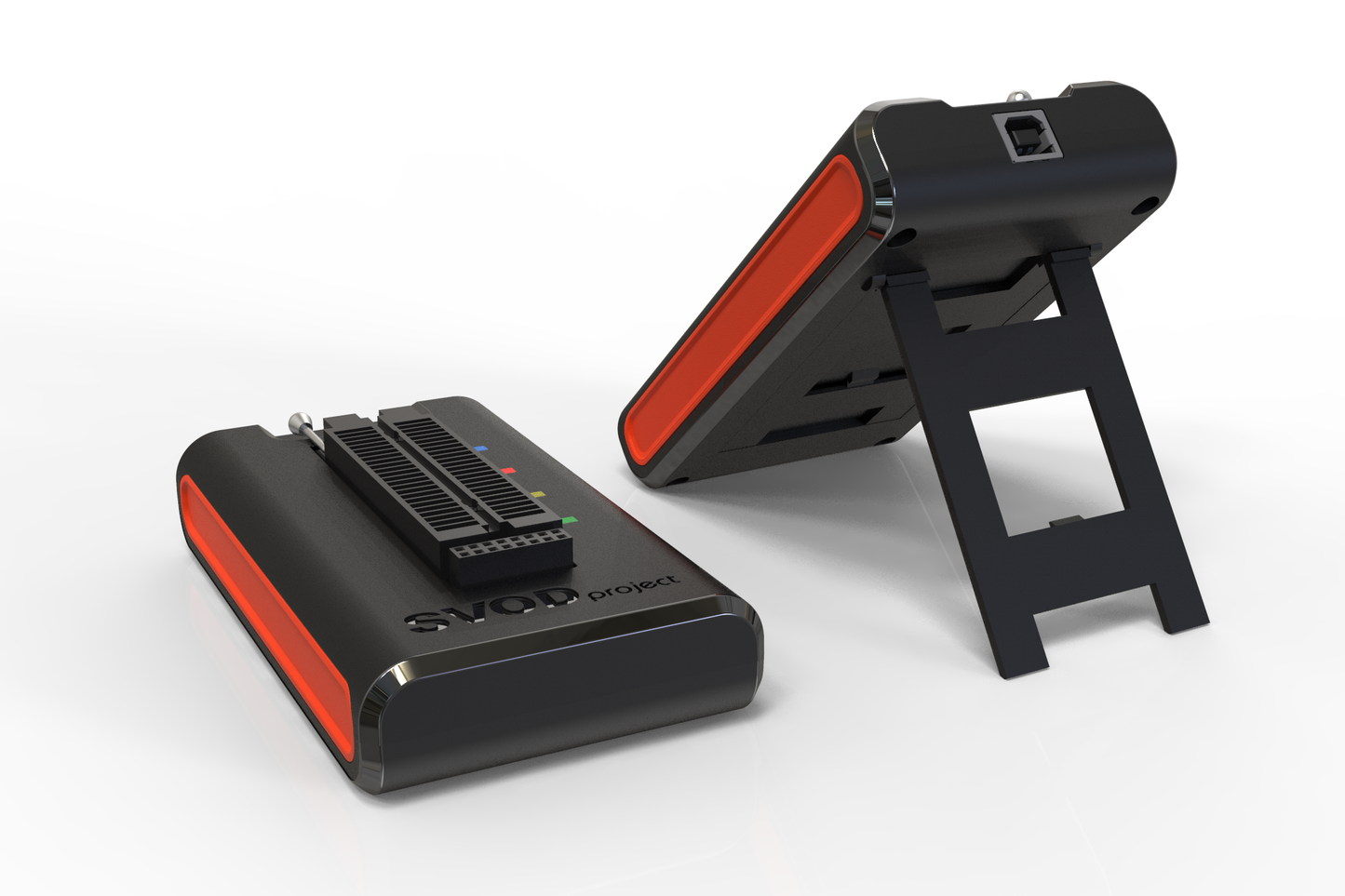

SVOD4 SPI Programmer

This SVOD Programmer V3 is a convenient way to fix any of the following laptop issue when EC Firmware embedded in SIO Chip is corrupted:

• No Power
• Keyboard not detected
• Not Charging
• Recover EMMC Data

Feature:

• Supports SIO KB9012, KB9016, KB930, ITE8586, ITE8580, ITE8585, ITE8587 IT9987 MEC1609 and others
• No activation needed
• Ergonomic design similar to multimeters
• Built-in keyboard tester
• Built-in poor contact detection
• Supports In-System Programming
• Supports 3.3v and 1.8v SPI Chips
• Read POST code in laptop board

Specifications:

• Online support for at Leaky Mosfet Support Group
• USB Port:  USB2.0 high speed
• Connection Socket: ZIF 48
• Number of input / output ports: 48,
• Supply voltage: 3.3V / 1.8V.
• Supported protocols: SPI, I2C, 1-Wire, NAND, NOR, EMMC, JTAG, UART, CAN, parallel synchronous and asynchronous protocols.

Software:

https://bit.ly/2JzkLij

How to Use Guides:

• ENE KB9012 on Precision M3800 (LA-9941P)
• ENE KB9022 on Thinkpad S1 Yoga 12 (LA-A342P)
• MEC5075 on Latitude E7440 (LA-9591P)
• ITE IT8586 on Thinkpad Yoga 2 Pro (VIUU3 NM-A074)
• In-Circuit Serial Programming with SVOD3

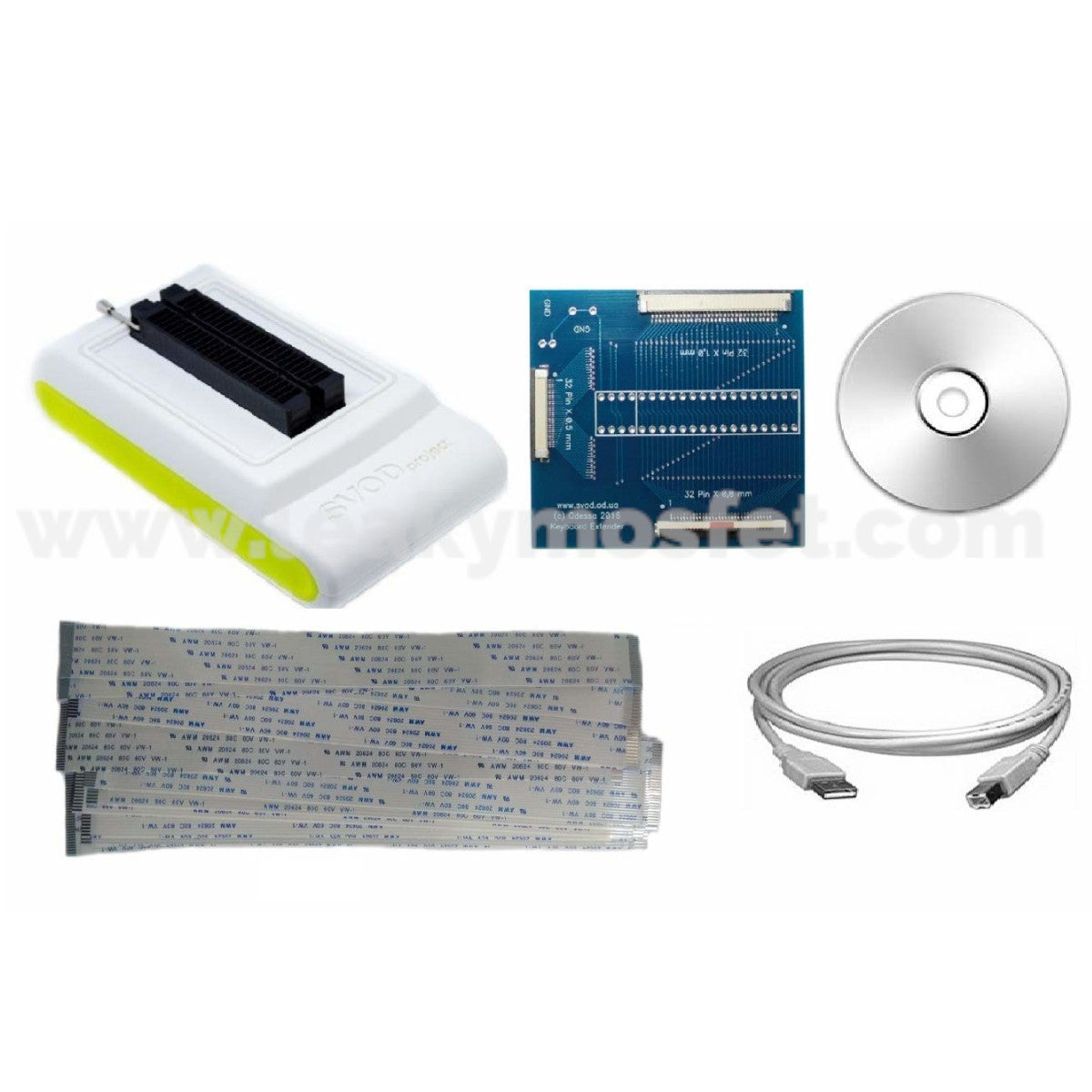

Package Content:

• 1 x SVOD 3 Programmer
• 12 x flex cable
• 1 x Switching module
• 1 x USB cable

Tags:

SVOD SVOD3 KB9012 KB9018 KB9022 KB9028 IT8586 IT8687E IT8987 MEC1609
