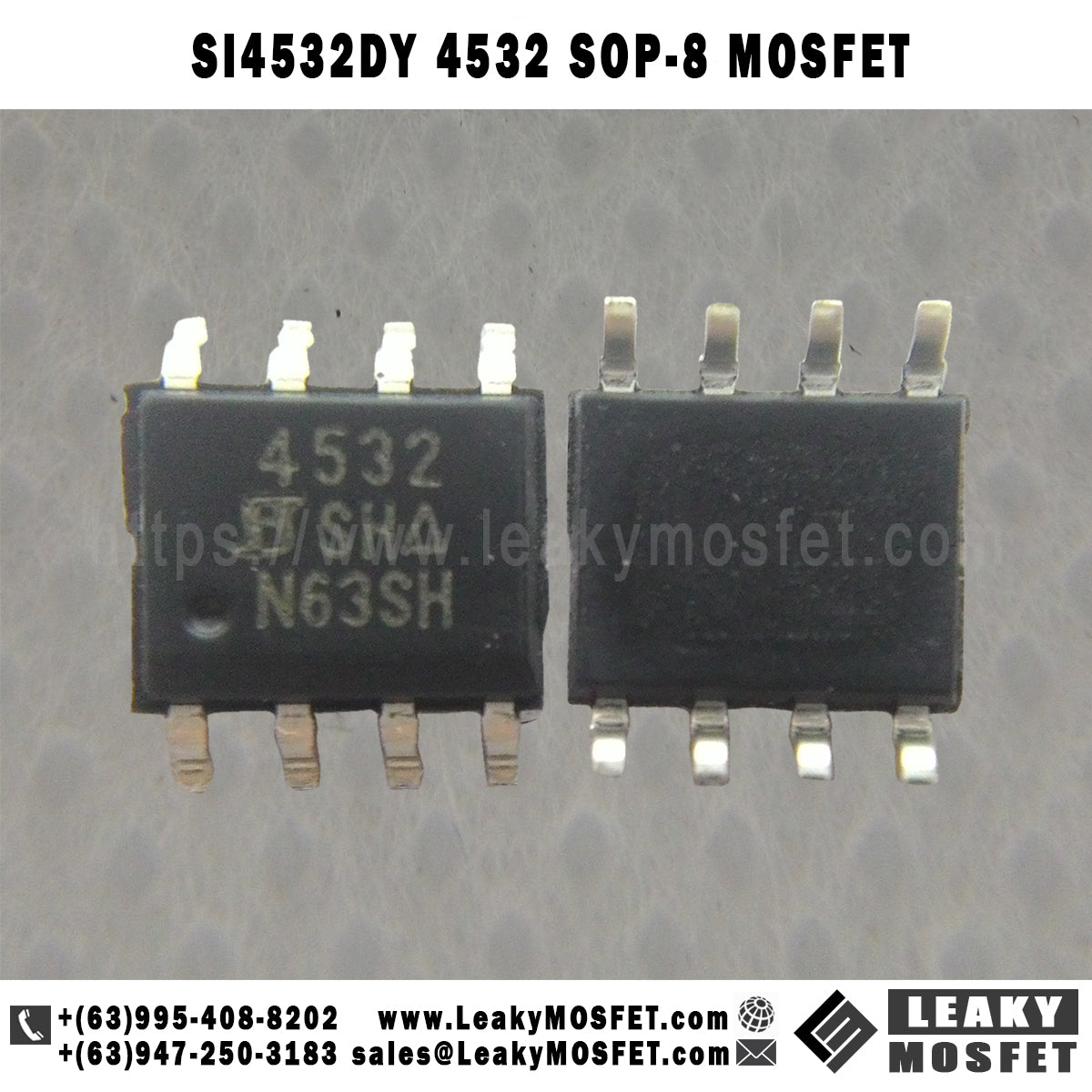

SI4532DY 4532 Dual MOSFET SOP-8
₱400.00
Description:
These dual N- and P-Channel enhancement mode power field effect transistors are produced using ON Semiconductor's propretary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance. These devices are particularly suited for low voltage applications such as notebook computer power management and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.
Specification:
- N-Channel 3.9A, 30V.RDS(ON) = 0.065Ω @VGS = 10V RDS(ON) = 0.095Ω @VGS = 4.5V
- P-Channel -3.5A,-30V.RDS(ON)= 0.085Ω @VGS = -10V RDS(ON)= 0.190 Ω @VGS = -4.5V.
Datasheet:
https://www.onsemi.com/pub/Collateral/SI4532DY-D.PDF
