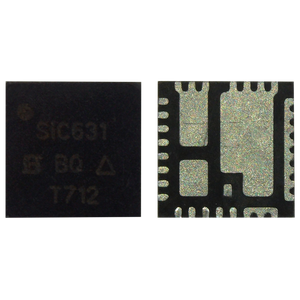

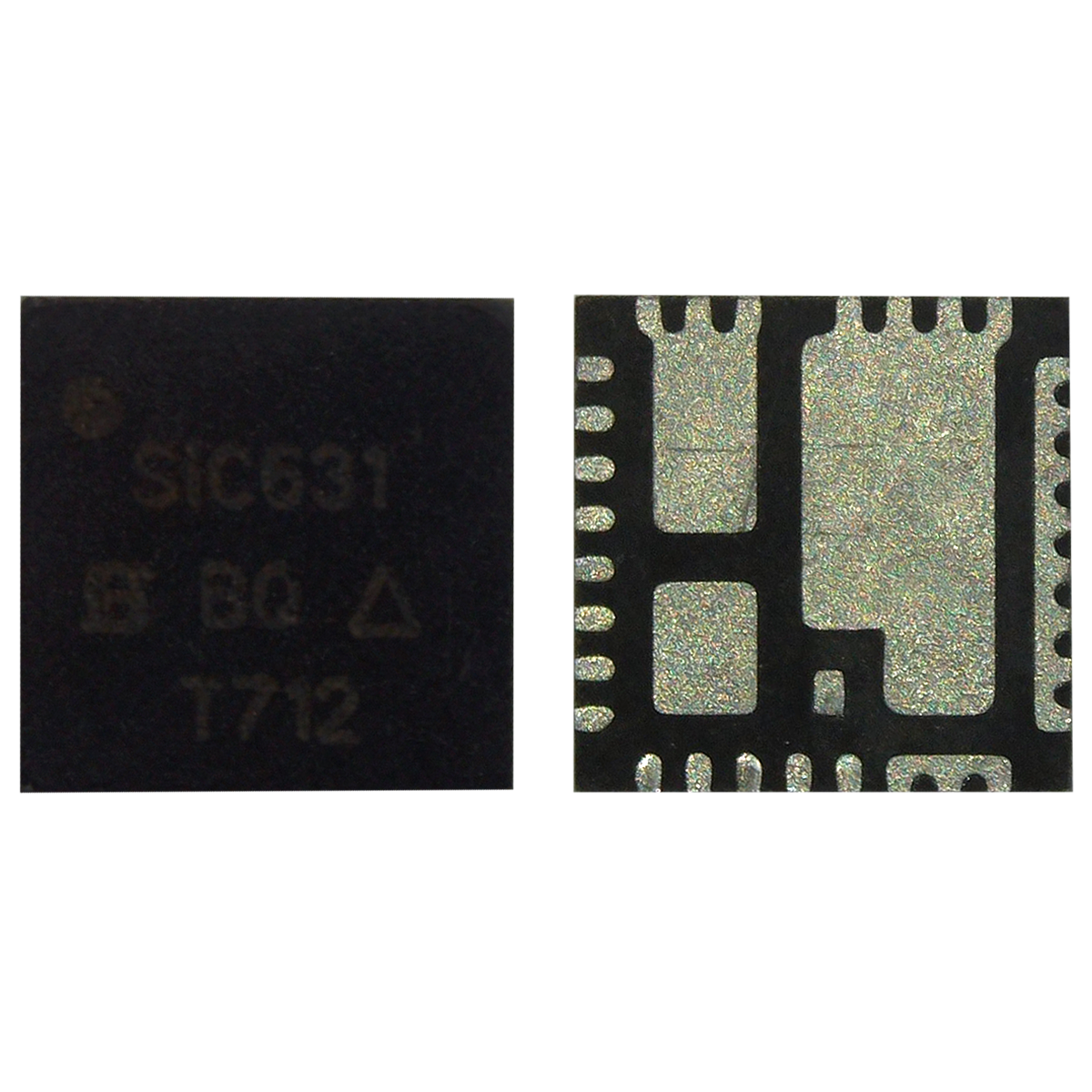

SIC631 MOSFET

Descriptions:

The SiC631 is integrated power stage solutions optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance. Packaged in Vishay’s proprietary 5 mm x 5 mm MLP package, SiC631 enables voltage regulator designs to deliver up to 50 A continuous current per phase.

Specifications:

  • Thermally enhanced PowerPAK® MLP55-31L package
  • Vishay’s Gen IV MOSFET technology and a low-side MOSFET with integrated Schottky diode
  •  Delivers in excess of 50 A continuous current, 55 A at 10 ms peak current
  • High efficiency performance
  •  High frequency operation up to 2 MHz
  •  Power MOSFETs optimized for 19 V input stage
  •  5 V PWM logic with tri-state and hold-off
  •  Supports PS4 mode light load requirement for IMVP8 with low shutdown supply current (5 V, 3 μA)
  •  Under voltage lockout for VCIN
  •  Material categorization: for definitions of compliance please see www.vishay.com/doc?99912

Datasheet:

https://www.vishay.com/docs/67104/sic631.pdf
