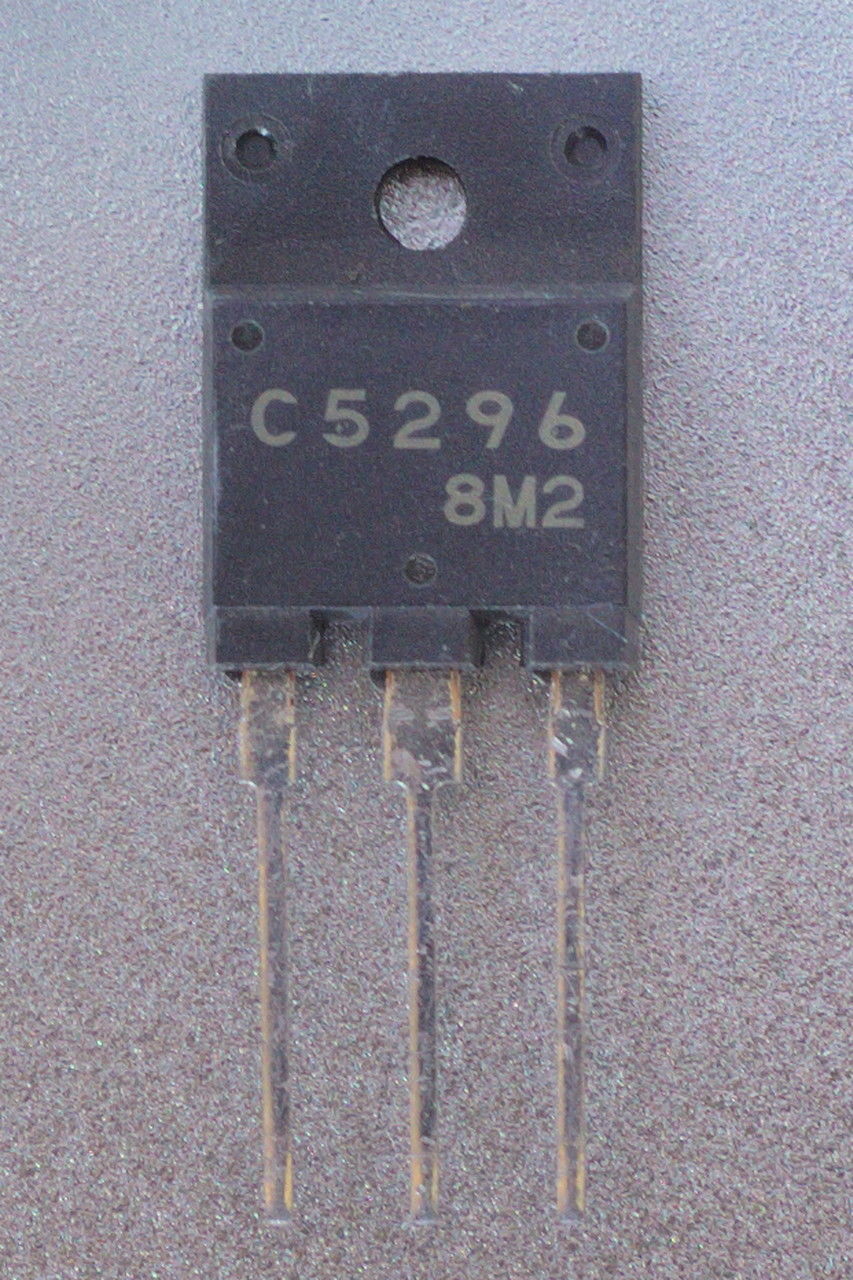

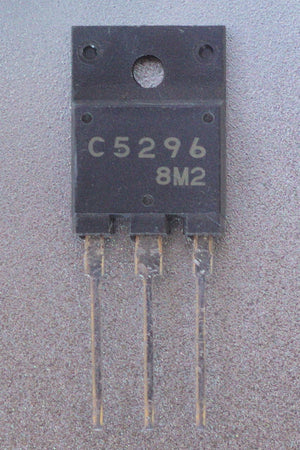

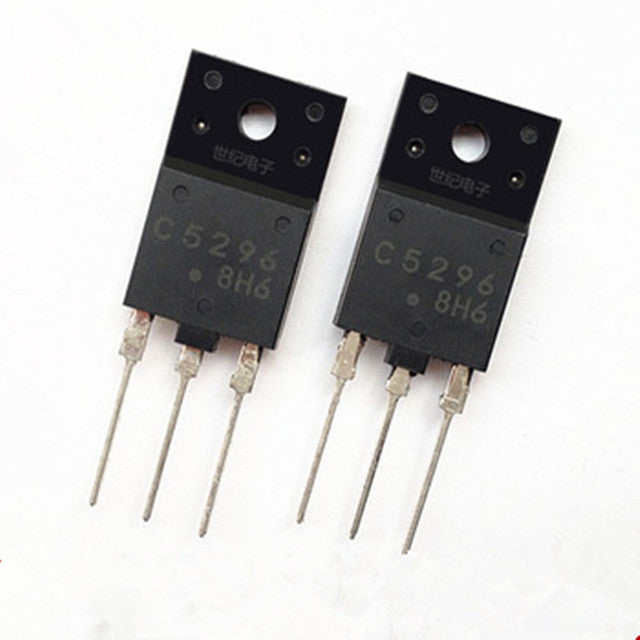

Sanyo C5296 TO-3PF Transistor

Part Number : C5296, 2SC5296

Function : NPN Triple Diffused Planar Silicon Transistor

Package : TO-3PML Type

Manufactures : Sanyo Semicon Device

Features

1. High speed : tf=100ns typ.
2. High breakdown voltage : VCBO=1500V.
3. High reliability (Adoption of HVP process).
4. Adoption of MBIT process.
5. On-chip damper diode

Description

Ultrahigh-Definition CRT Display, Horizontal Deflection Output Applications
Absolute Maximum Ratings at Ta = 25°C

1. Collector-to-Base Voltage : VCBO = 1500 V
2. Collector-to-Emitter Voltage : VCEO = 800 V
3. Emitter-to-Base Voltage : VEBO = 6 V
4. Collector Current : IC = 8 A
5. Collector Current (Pulse) : ICP = 16 A
6. Collector Dissipation : PC = 3.0 W
7. Junction Temperature : Tj = 150’C
