RT8205L/M QFN-24

Type

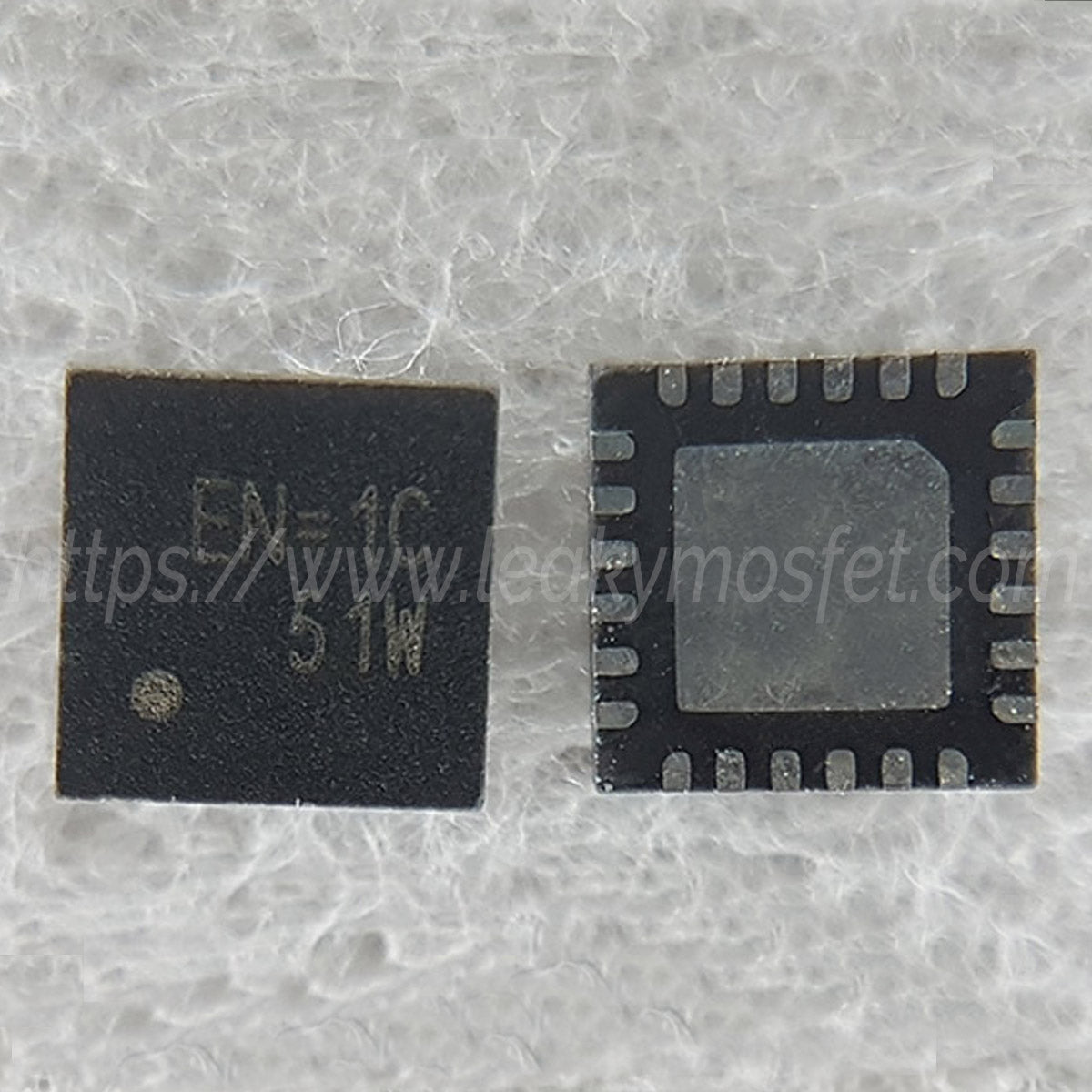

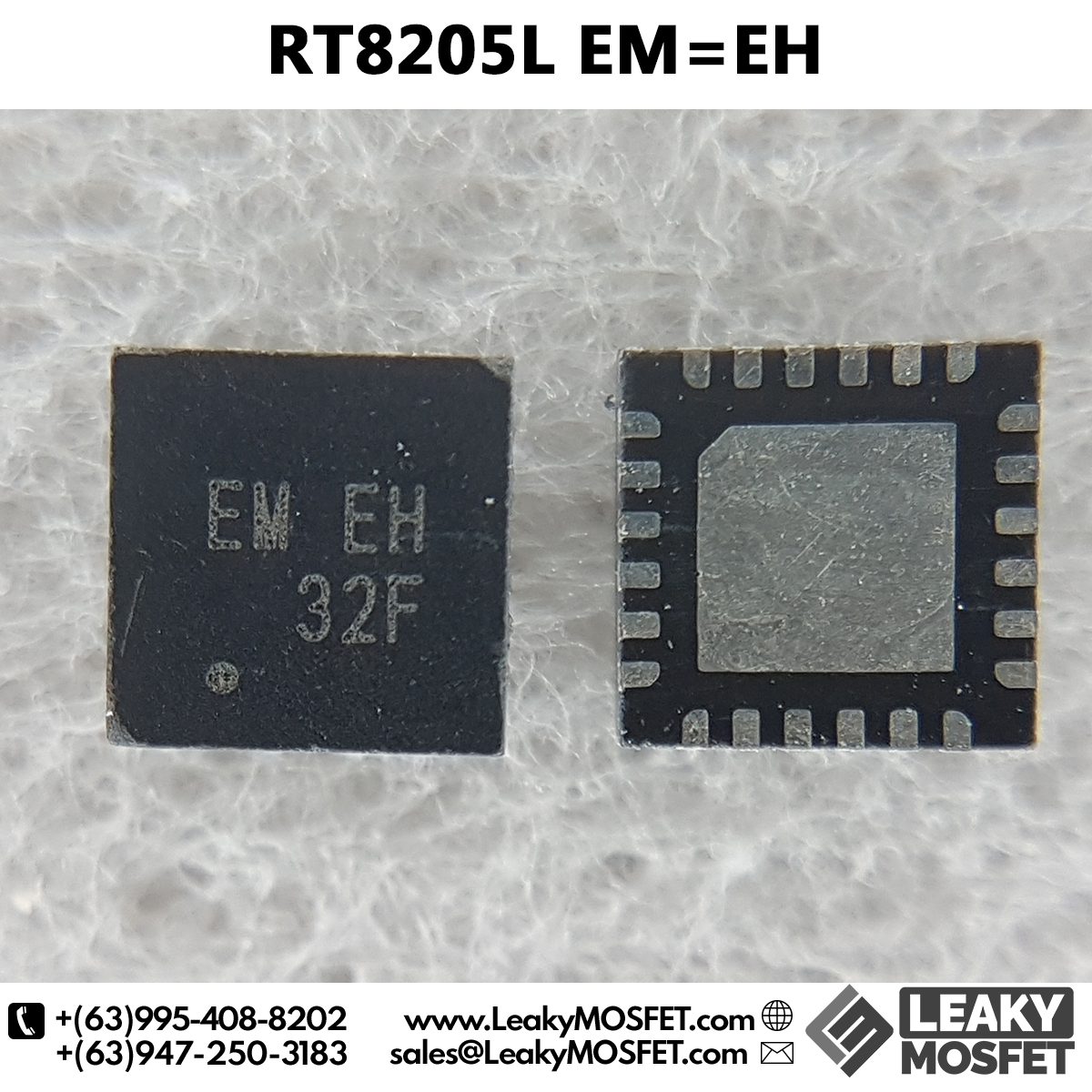

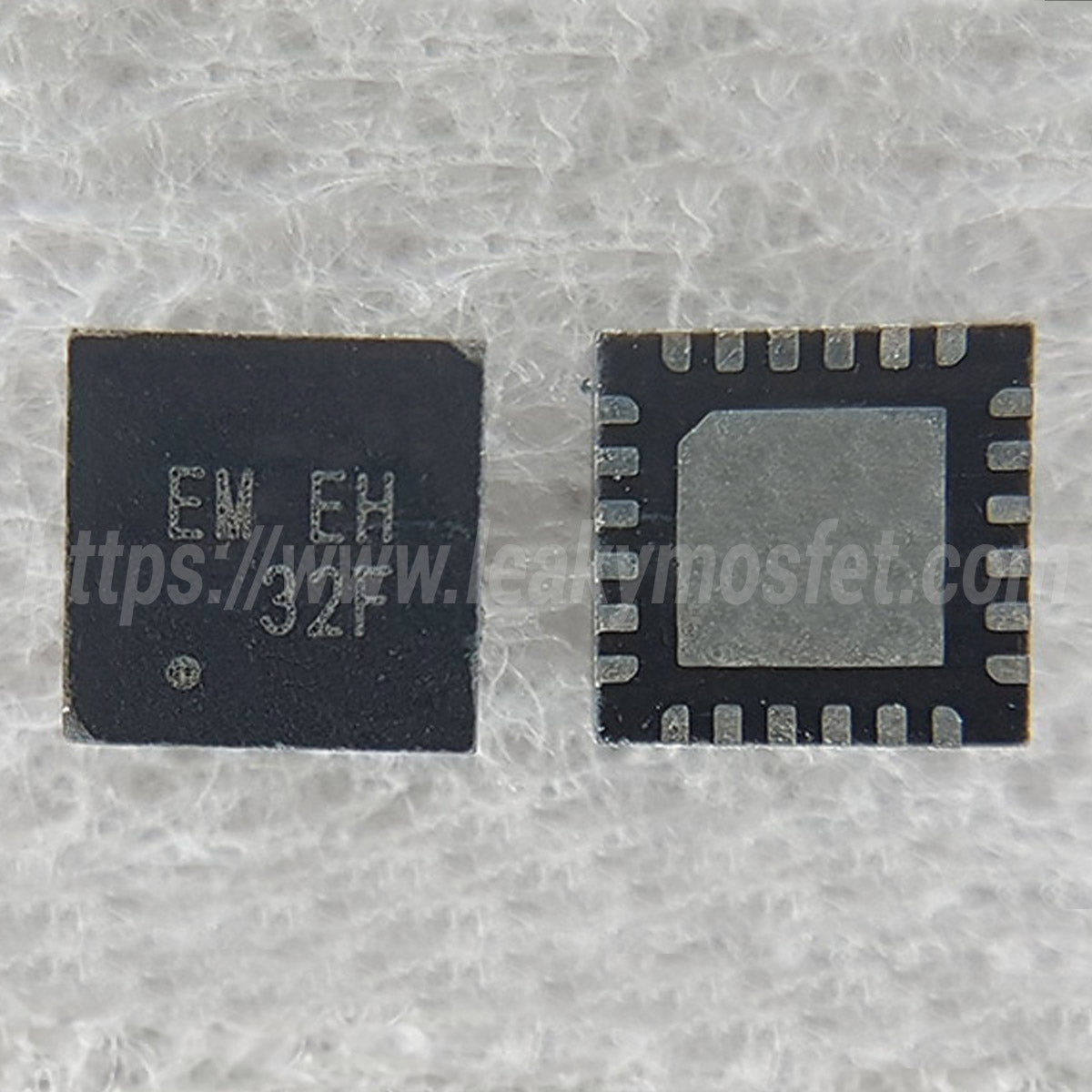

Brand new Richtek High Efficiency, Main Power Supply Controller for Notebook Computer  RT8205L (EM=) RT9205M (EN=) QFN-24

Features:

  • Constant On-time Control with 100ns Load Step Response
  • Wide Input Voltage Range : 6V to 25V
  • Dual Adjustable Outputs from 2V to 5.5V
  • Secondary Feedback Input Maintains Charge Pump Voltage (RT8205M)
  • Fixed 3.3V and 5V LDO Output : 100mA
  • 2V Reference Voltage
  • Frequency Selectable via TONSEL Setting
  • 4700ppm/°C RDS(ON) Current Sensing z Programmable Current Limit Combined with Enable Control
  • Selectable PWM, DEM, or Ultrasonic Mode
  • Internal Soft-Start and Soft-Discharge
  • High Efficiency up to 97%
  • 5mW Quiescent Power Dissipation
  • Thermal Shutdown z RoHS Compliant and Halogen Free

Datasheet:

https://www.richtek.com/assets/product_file/RT8205L=RT8205M/DS8205LM-05.pdf

Product Tags:

RT 8205 8205L 8205M EM EN
