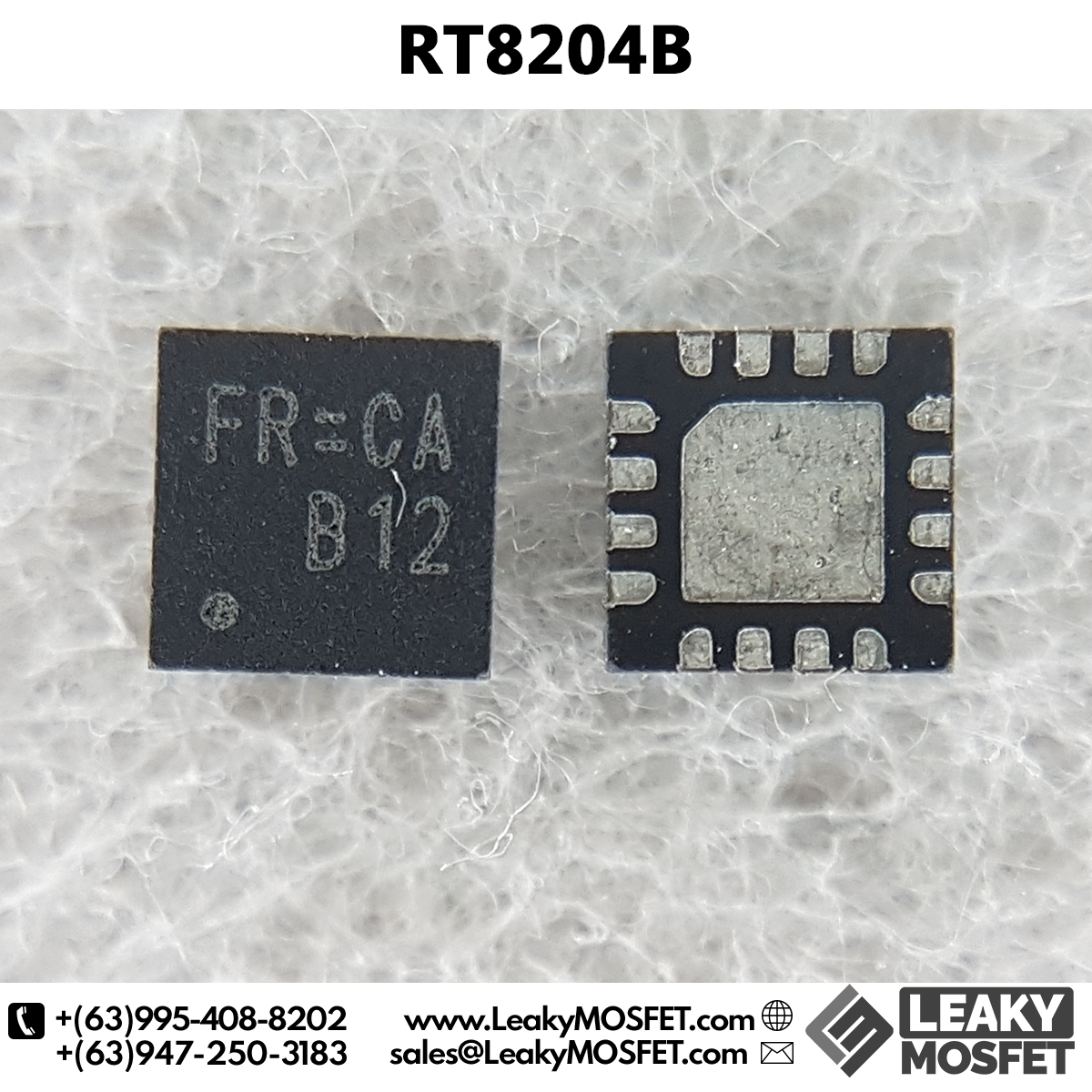

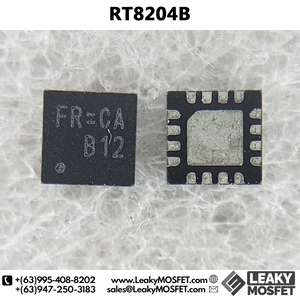

RT8204B PWM IC Regulator QFN-16

Features
  • PWM Controller
      ♦ Ultra-High Efficiency
      ♦ Resistor Programmable Current Limit by Low Side RDS(ON)Sense (Lossless Limit) or Sense Resistor (High Accuracy)
      ♦ Quick Load Step Response within 100ns
      ♦ 1% VOUT Accuracy Over Line and Load
      ♦ Adjustable 0.75V to 3.3V Output Range
      ♦ 3V to 26V Battery Input Range
      ♦ Resistor Programmable Frequency
      ♦ Over/Under Voltage Protection
      ♦ 2 Steps Current Limit During Soft-Start
      ♦ Drives Large Synchronous-Rectifier FETs
      ♦ Power-Good Indicator
  • LDO Controller
      ♦ 1.5% Accuracy Over Line and Load
      ♦ Adjustabe Output Voltage down to 0.75V
      ♦ Independent Enable and Power Good Indicator
      ♦ Drive N-MOSFETs within Rail to Rail Controller Voltage
      ♦ MLCC and POSCAP Stable
  • RoHS Compliant and Halogen Free
