RT8202 8202A 8202B DJ- QFN-16

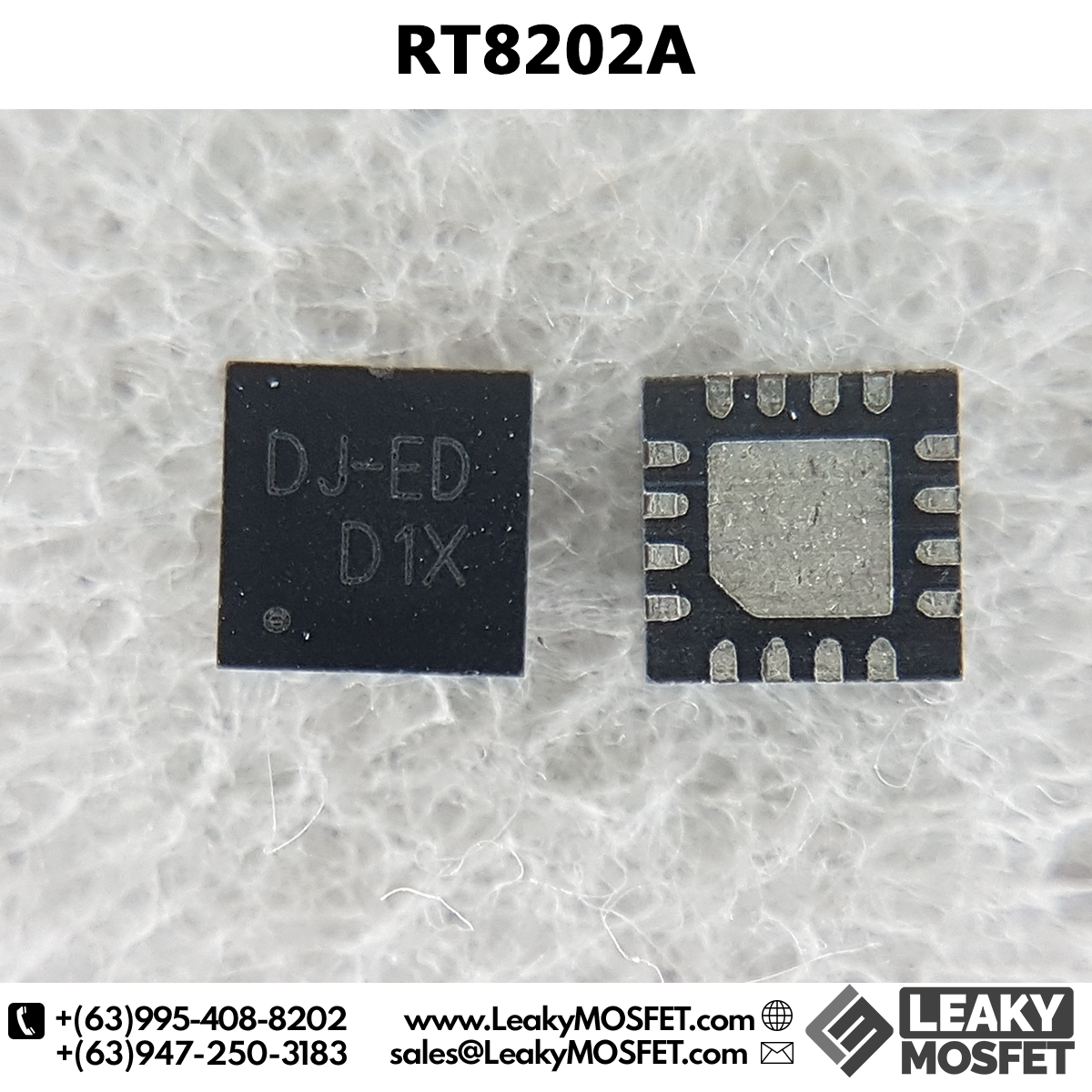

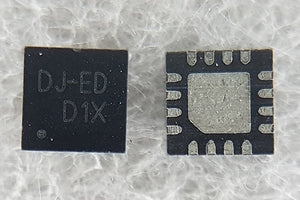

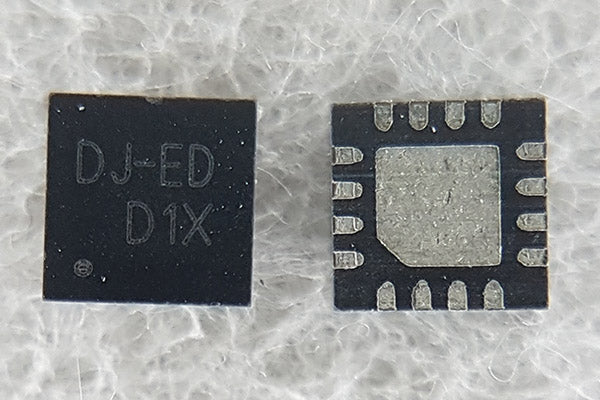

Brand new Richtek RT8202 DJ- QFN-16

The RT8202/A/B PWM controller provides high efficiency, excellent transient response, and high DC output accuracy needed for stepping down high voltage batteries to generate low voltage CPU core, I/O, and chipset RAM supplies in notebook computers.

Features:

  • Ultra-High Efficiency
  • Resistor Programmable Current Limit by Low Side RDS(ON) Sense (Lossless Limit) or Sense Resistor (High Accuracy)
  • Quick Load Step Response within 100ns
  • 1% VOUT Accuracy over Line and Load
  • Adjustable 0.75V to 3.3V Output Range
  • 4.5V to 26V Battery Input Range
  • Resistor Programmable Frequency
  • Over/Under Voltage Protection
  • 2 Steps Current Limit During Soft-Start
  • Drives Large Synchronous-Rectifier FETs
  • Power Good Indicatorz RoHS Compliant and 100% Lead (Pb)-Free

Datasheet:

https://www.richtek.com/assets/rqs_file/RT8202%20AB.pdf
