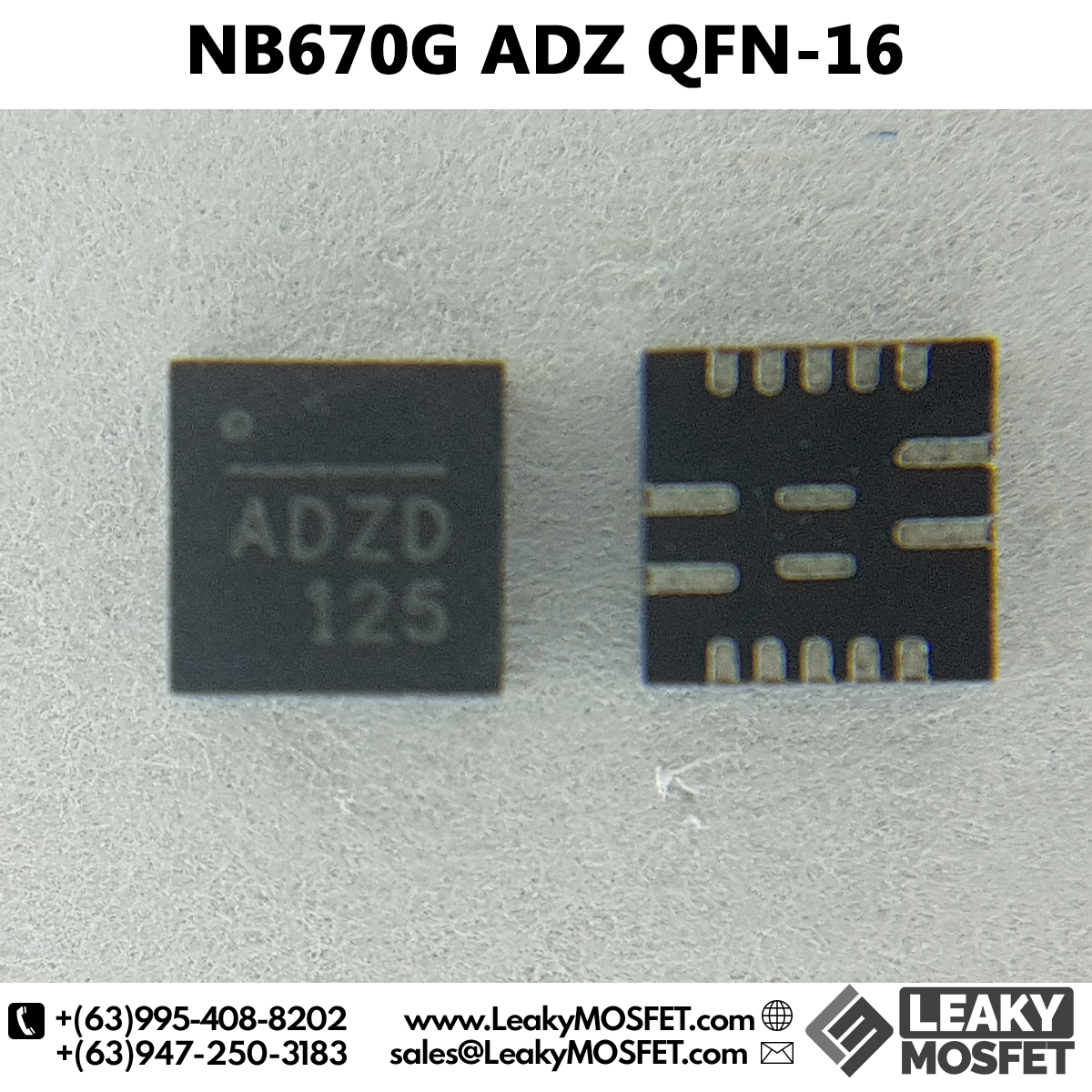

NB670G ADZ QFN-16

Bundle

Brand new NB670G ADZ QFN-16

The NB670G is a fully integrated high frequency synchronous rectified step-down switch mode converter with 3.3V fixed output voltage. It offers very compact solution to achieve 6A continuous output current and 9A peak output current over a wide input supply range with excellent load and line regulation. The NB670 operates at high efficiency over a wide output current load range. Constant-On-Time (COT) control mode provides fast transient response and eases loop stabilization.

Features:

  • Wide 5V to 24V Operating Input Range
  • 3.3V Fixed Output Voltage
  • Built-in 3.3V, 100mA LDO with Switches
  • 6A Continuous Output Current
  • 9A Peak Output Current
  • 300kHZ CLK for External Charge Pump
  • Low RDS(ON) Internal Power MOSFETs
  • Proprietary Switching Loss Reduction Technique
  • Internal Soft Start
  • Output Discharge
  • 500kHZ Switching Frequency
  • OCP, OVP, UVP Protection and Thermal Shutdown

Datasheet:

http://www.s-manuals.com/pdf/datasheet/n/b/nb670_r1.01_mps.pdf

Tags:

MAINREG 5V Regulator
