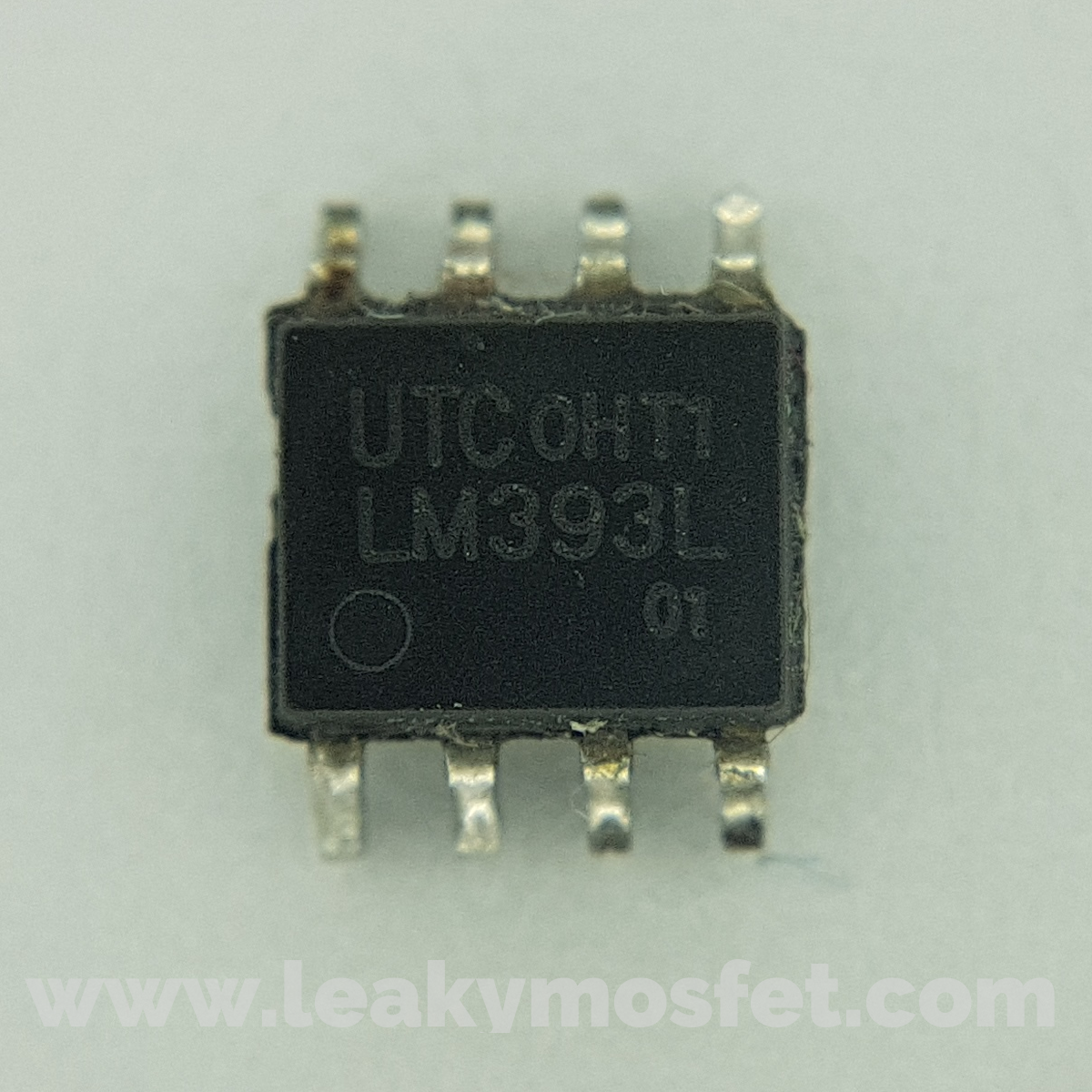

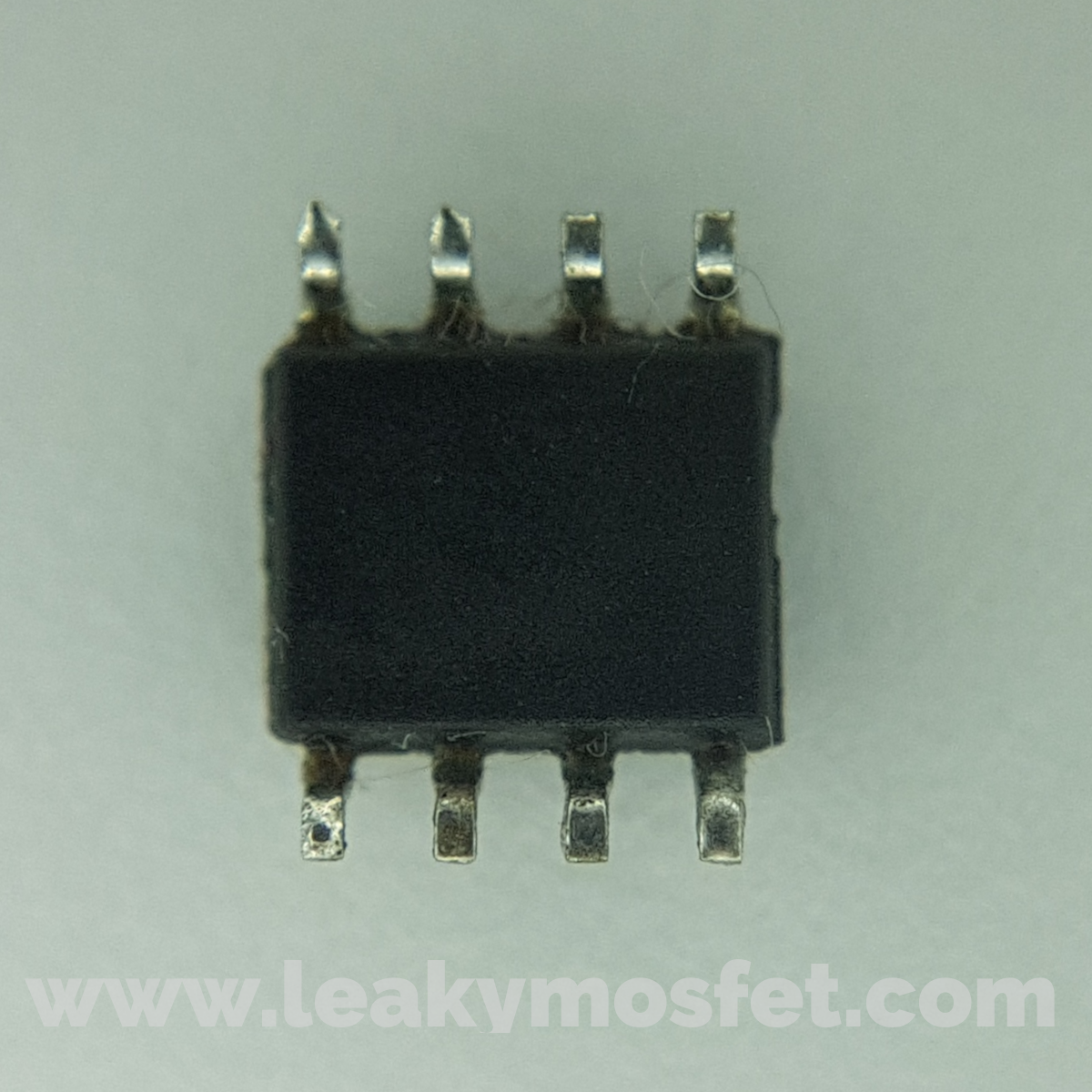

LM393L-S08-R

 DESCRIPTION

The UTC LM393 consists of two independent voltage comparators, designed specifically to operate from a single power supply over a wide voltage range.

 FEATURES

* Single or dual supply operation.

* Wide operating supply range (VCC=2V ~ 36V or ±1 ~ ±18V)

* Input common-mode voltage includes ground.

* Low supply current drain ICC=0.8mA (Typical).

* Low input bias current IBIAS=25nA (Typical).

* Output compatible with TTL, DTL, and CMOS logic system.
