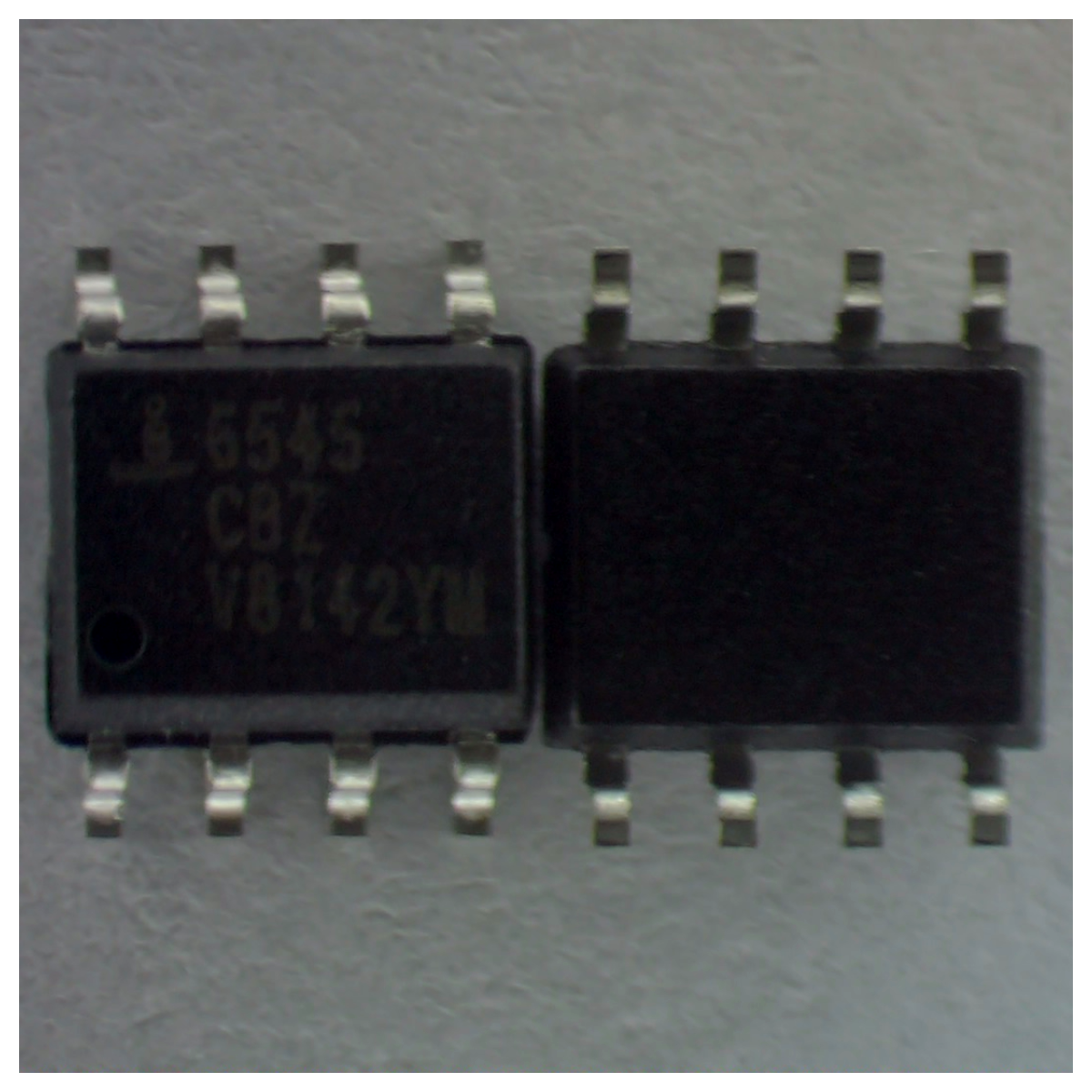

ISL6545CBZ

Product Description

The ISL6545 makes simple work out of implementing a complete control and protection scheme for a DC/DC stepdown converter driving N-Channel MOSFETs in a synchronous buck topology. Since it can work with either 5V or 12V supplies, this one IC can be used in a wide variety of applications within a system. The ISL6545 integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 8 Ld SOIC or 10 Ld DFN package.

Features:

  • Operates from +5V or +12V Supply Voltage (for bias)
  • Simple Single-Loop Control Design
  • Fast Transient Response
  • Lossless, Programmable Overcurrent Protection
  • Small Converter Size in 8 Ld SOIC or 10 Ld DFN
  • Pb-Free (RoHS Compliant)

https://www.renesas.com/us/en/document/dst/isl6545-isl6545a-datasheet
