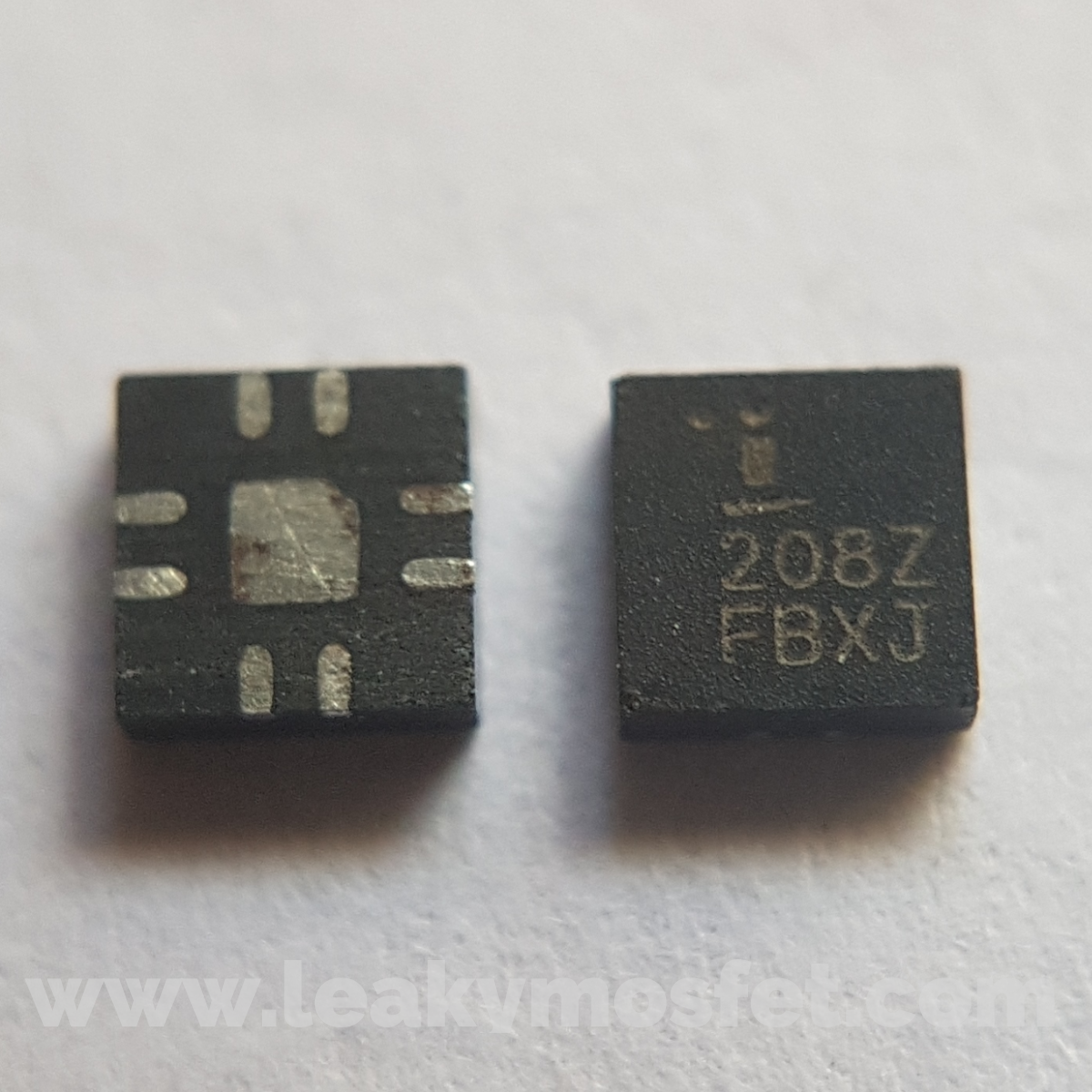

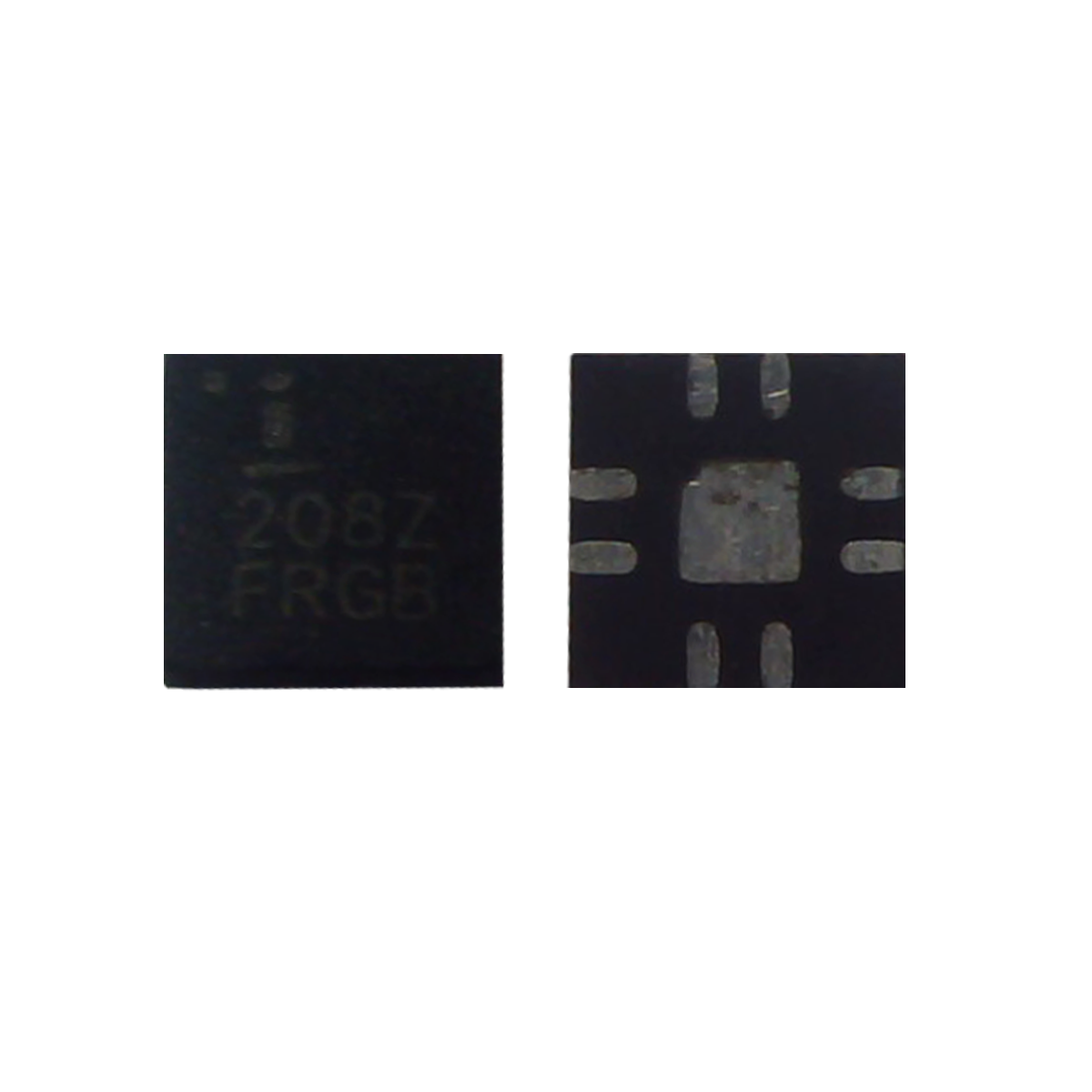

ISL208Z ISL6208CRZ 208Z Dual MOSFET Driver IC Chip QFN

Features

  • Dual MOSFET drives for synchronous rectified bridge
  • Adaptive shoot-through protection
  • 0.5 ohms On-resistance and 4A sink current capability
  • Supports high switching frequency up to 2MHz
    • Fast output rise and fall time
    • Low propagation delay
  • Three-state PWM input for power stage shutdown
  • Internal bootstrap schottky diode
  • Low bias supply current (5V, 80µA)
  • Diode emulation for enhanced light load efficiency and prebiased start-up applications
  • VCC POR (power-on-reset) feature integrated
  • Low three-state shutdown holdoff time (typical 160ns)
  • Pin-to-pin compatible with ISL6207
  • QFN and DFN package:
    • Compliant to JEDEC PUB95 MO-220
    • QFN - Quad flat no leads - package outline
    • DFN - Dual flat no leads - package outline
    • Near chip scale package footprint, which improves PCB efficiency and has a thinner profile
  •  Pb-free (RoHS compliant)

Applications

  • Core voltage supplies for Intel® and AMD® mobile
  • microprocessors
  • High frequency low profile DC/DC converters
  • High current low output voltage DC/DC converters
  • High input voltage DC/DC converters
