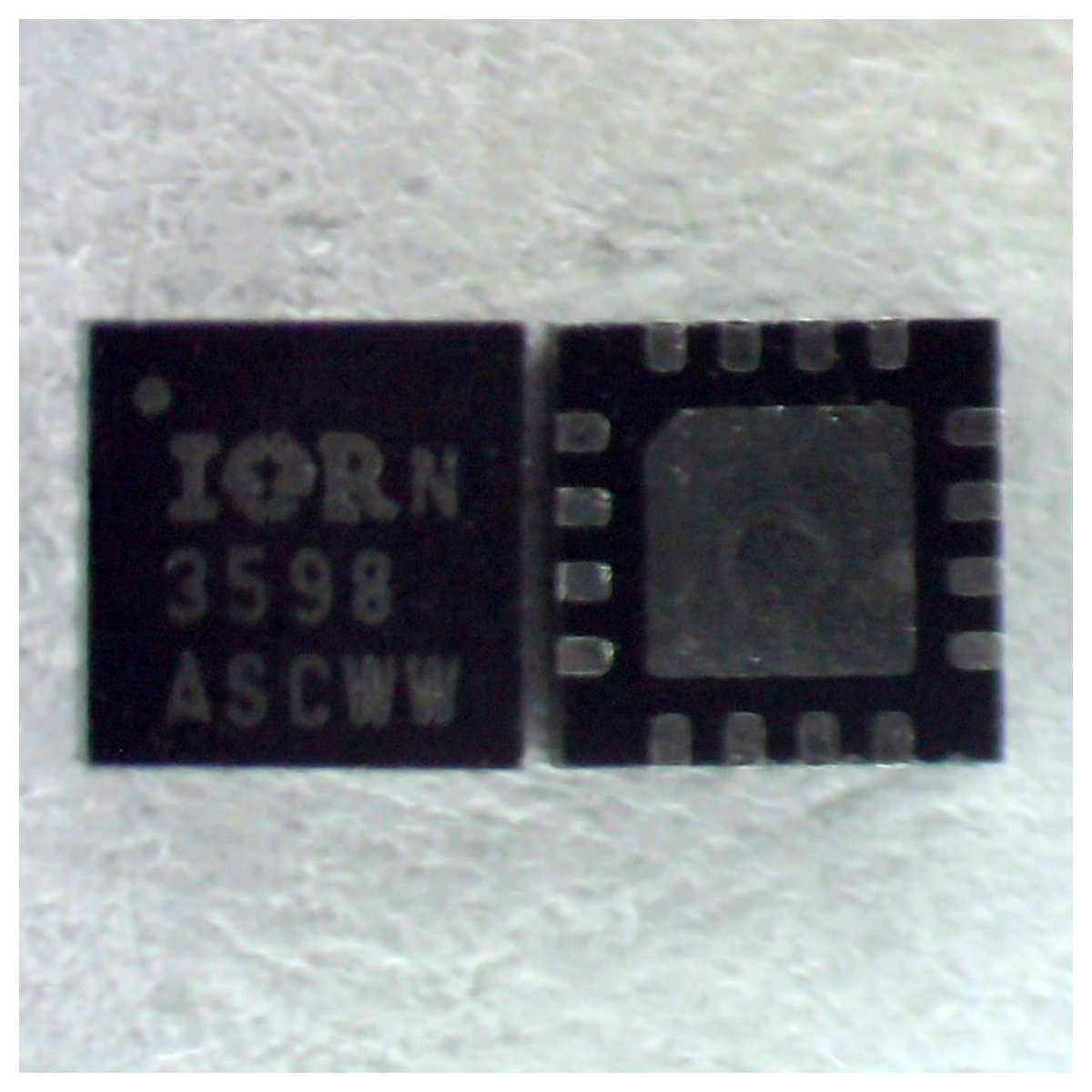

IR3598 IR 3598 Dual/Doubler Interleaved MOSFET Driver

Dual/Doubler Interleaved MOSFET Driver

Benefits

  • Dual MOSFET drivers in single 16 pin QFN package
  • Multimode operation to configure the driver as either dual or doubler/interleaved mode drivers
  • Variable Gate drive from 4V to 13V to optimize system efficiency
  • 5V VCC and VDRV capability for sleep states where only 5V is available
  • Large drivers designed to drive 3nF in < 12ns with any voltage from 5V to 12V (typ) supplied to the VDRV pin
  • Low side driver - 0.85Ohms source/0.38Ohms sink
  • High side driver - 1.1Ohms source/0.60Ohms sink
  • Propagation delays < 20ns
  • Integrated bootstrap diode on both drivers
  • Capable of high output switching frequencies from 150kHz up to greater than 1MHz
  • Compatible with our patented Active Tri-Level (ATL) PWM for fastest response to transient overshoot as well as industry standard 3.3V and 5V Tri-State signals in most modes
  • Non-overlap and under voltage protection
  • Thermally enhanced 16 pin QFN package
  • Lead free RoHS compliant package
  • Low Quiescent power to optimize efficiency
