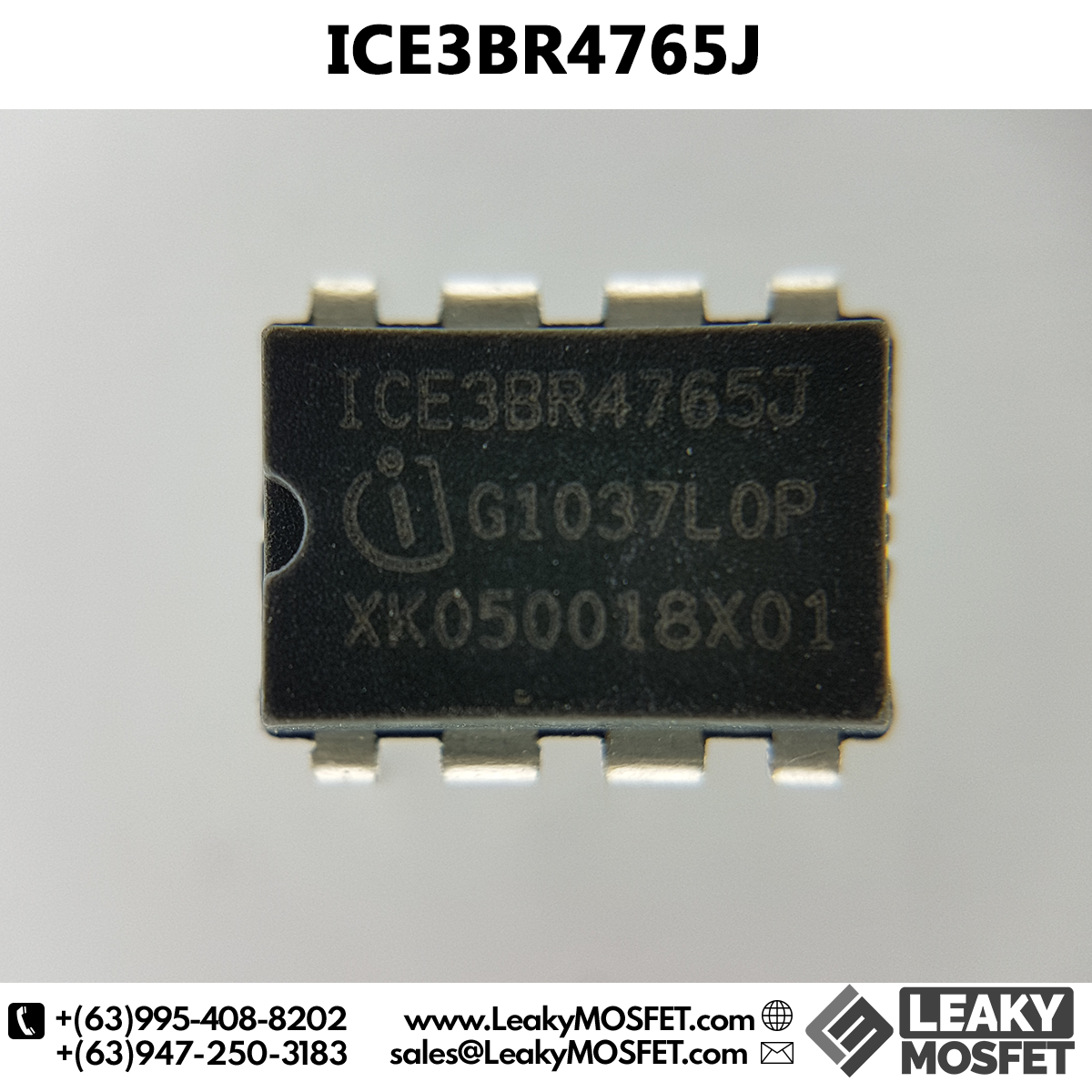

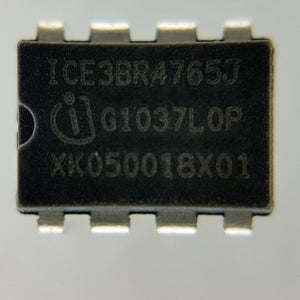

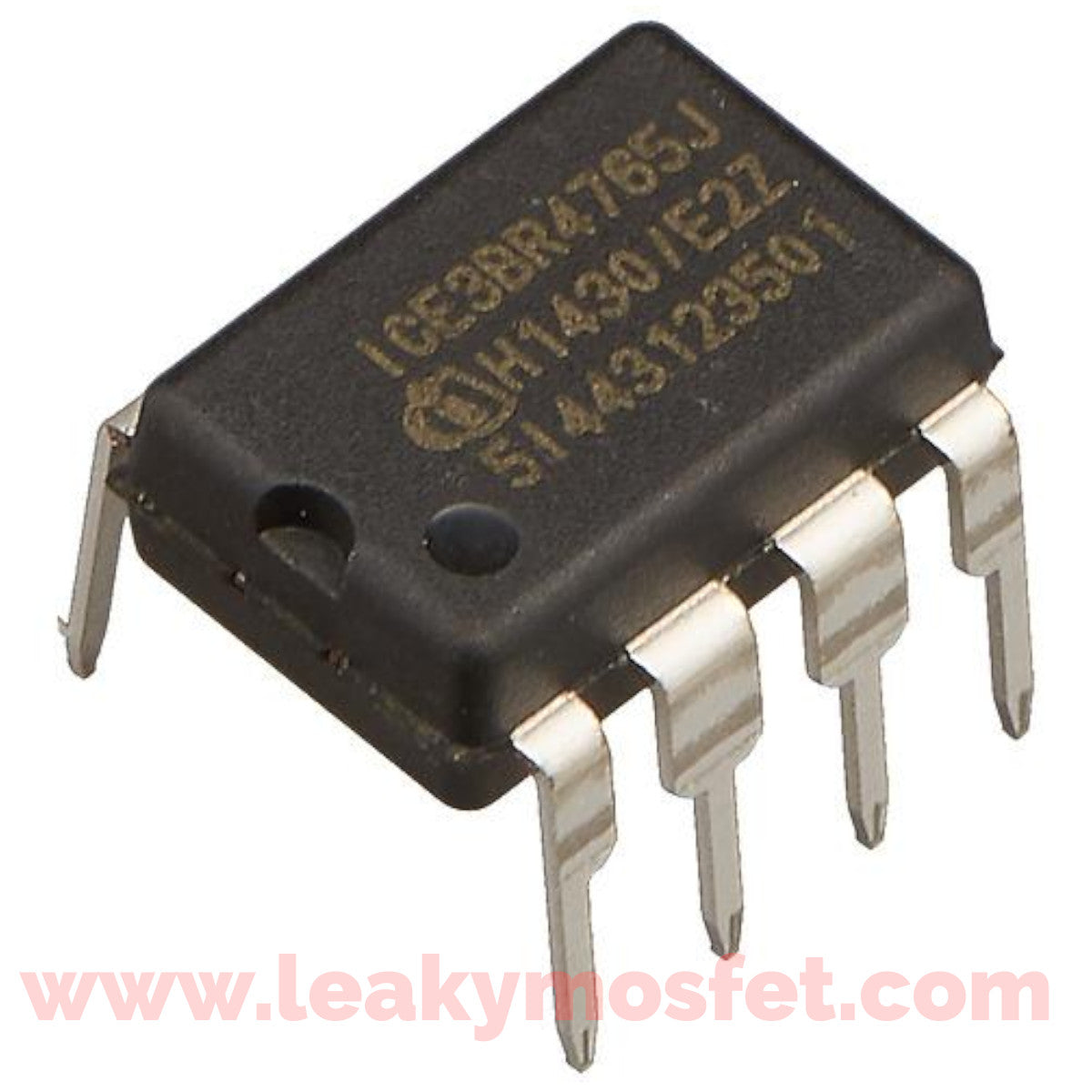

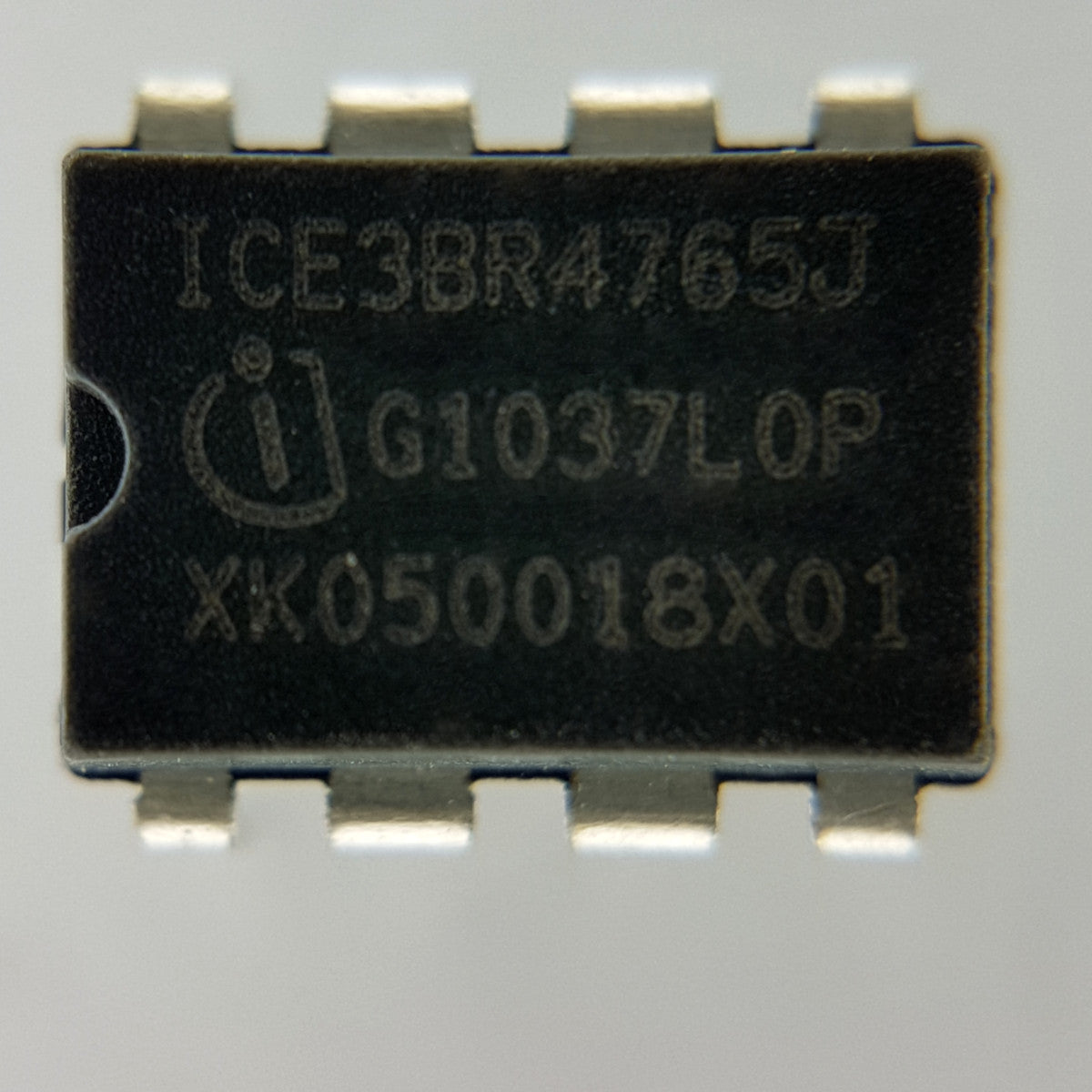

ICE3BR4765J DIP-8

Off-Line SMPS Current Mode Controller with integrated 650V CoolMOS® and Startup cell (frequency jitter Mode) in DIP-8

 Features:

  • 650V avalanche rugged CoolMOS® with built-in Startup Cell
  • Active Burst Mode for lowest Standby Power
  • Fast load jump response in Active Burst Mode
  • 65kHz internally fixed switching frequency
  • Auto Restart Protection Mode for Overload, Open Loop, VCC Undervoltage, Overtemperature & Overvoltage
  • Built-in Soft Start
  • Built-in blanking window with extendable blanking time for short duration high current • External auto-restart enable pin
  • Max Duty Cycle 75%
  • Overall tolerance of Current Limiting < ±5%
  • Internal PWM Leading Edge Blanking
  • BiCMOS technology provide wide VCC range
  • Built-in Frequency jitter and soft driving for low EMI

Datasheet:

https://bit.ly/2QpENhW
