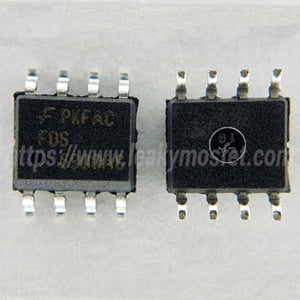

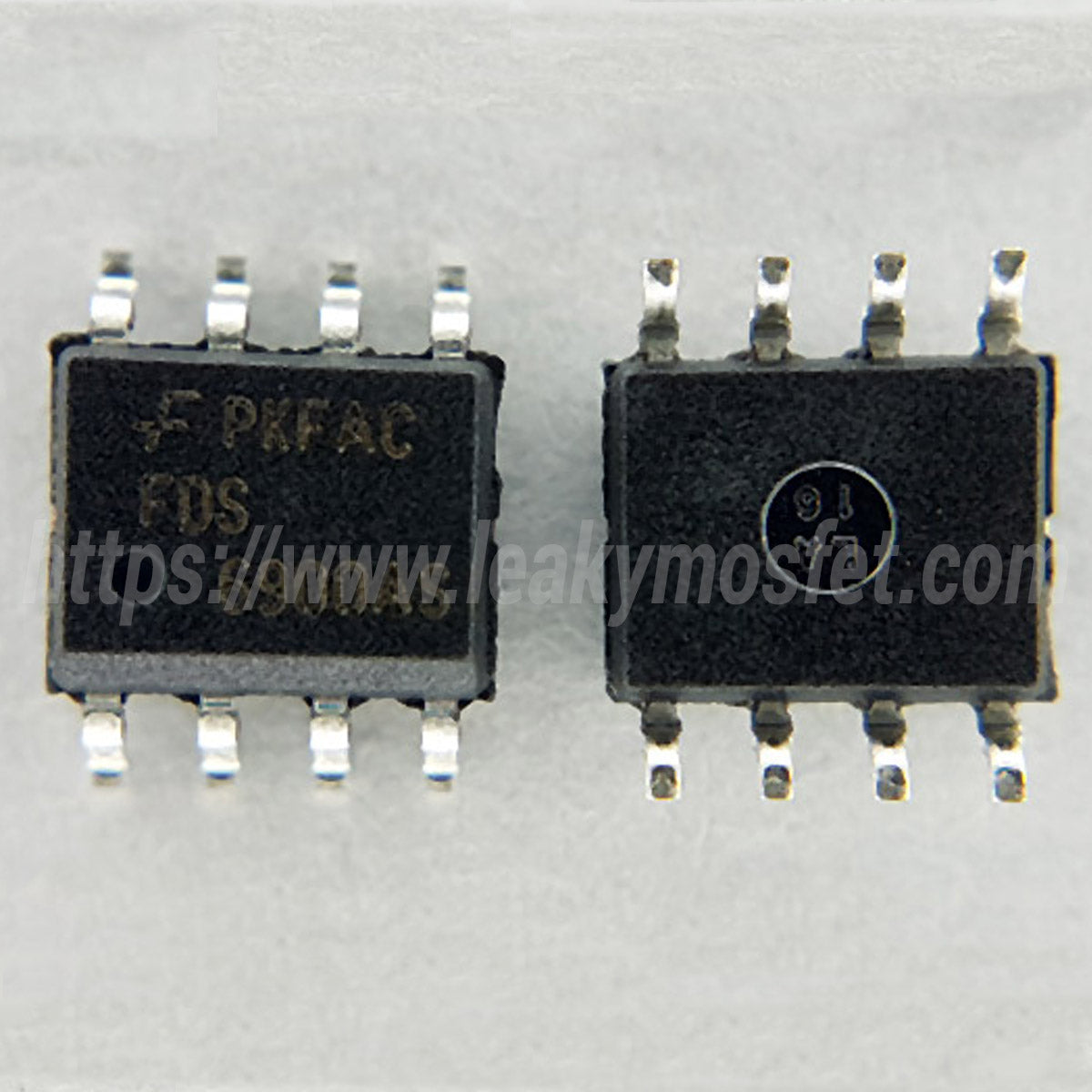

FDS6900AS 6900AS 6900 Dual N-Channel PowerTrench SyncFET SOP-8
₱300.00
The FDS6900AS is designed to replace two single SO-8 MOSFETs and Schottky diode in synchronous DC:DC power supplies that provide various peripheral voltages for notebook computers and other battery-powered electronic devices. FDS6900AS contains two unique 30V, N-channel, logic level, PowerTrench MOSFETs designed to maximize power conversion efficiency.
The high-side switch (Q1) is designed with a specific emphasis on reducing switching losses while the low-side switch (Q2) is optimized to reduce conduction losses. Q2 also includes an integrated Schottky diode using ON Semiconductor’s monolithic SyncFET technology.
Specifications:
- Q2: Optimized to minimize conduction losses
- Includes SyncFET Schottky body diode
- 8.2A, 30VRDS(on)= 22mΩ@ VGS = 10VRDS(on)= 28mΩ@ VGS= 4.5VÂ
- Q1: Optimized for low switching losses
- Low Gate Charge (11nC typical)
- 6.9A, 30V RDS(on)= 27mΩ@ VGS= 10VRDS(on)=34mΩ@ VGS= 4.5VÂ
- 100% RGÂ
- (Gate Resistance) Tested
Datasheet:
https://bit.ly/2DCziK5
