BQ 24780S QFN-28

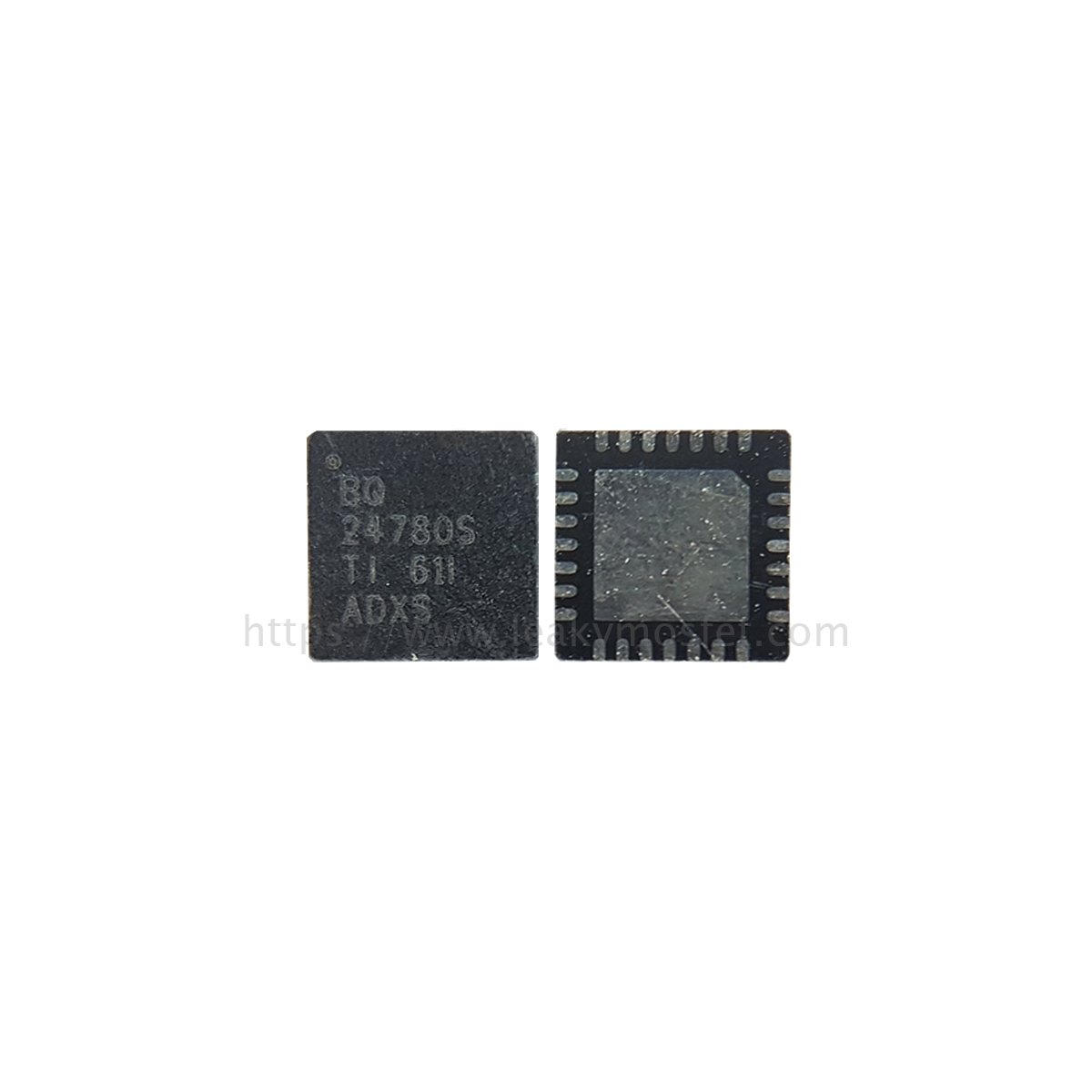

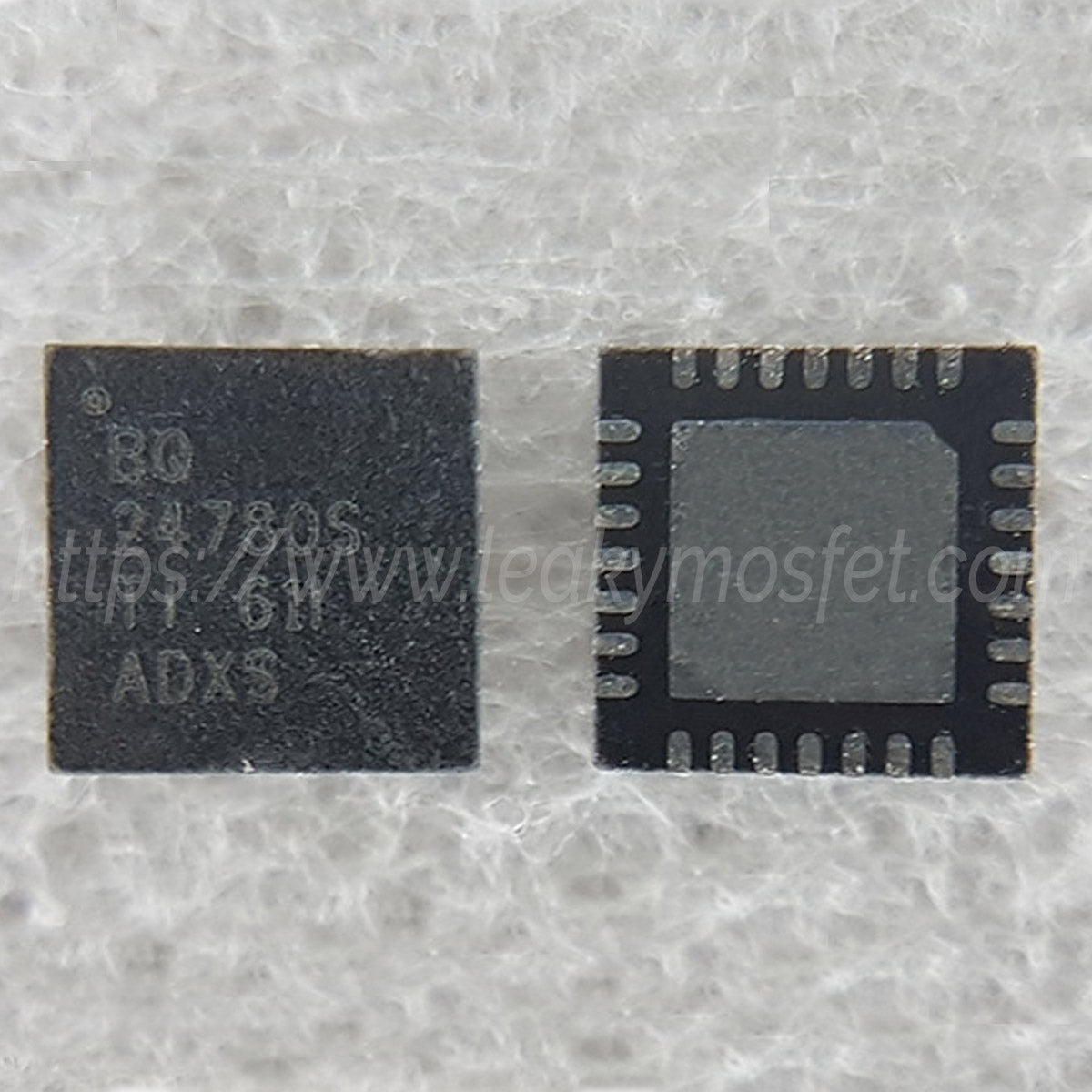

Brand new BQ24780S QFN-28

The bq24780S device is a high-efficiency, synchronous battery charger, offering low component count for space-constrained, multi-chemistry battery charging applications. The bq24780S device supports hybrid power boost mode (previously called "turbo boost mode"). It allows battery discharge energy to system when system power demand is temporarily higher than adapter maximum power level. Therefore, adapter does not crash.

Features:

  • Industrial Innovative Charge Controller With Hybrid Power Boost Mode – Adapter and Battery Provides Power to System Together for Intel® CPU Turbo Mode
    • Ultra-Fast Transient Response of 150 µs to Enter Boost Mode
    • Hybrid Power Boost Mode from 4.5- to 24-V System
    • Charge 1- to 4-Cell Battery Pack from 4.5- to 24-V Adapter
  • High Accuracy Power and Current Monitoring for CPU Throttling
    • Comprehensive PROCHOT Profile
    • ± 2% Current Monitor Accuracy
    • ± 5% System Power Monitor Accuracy (PMON)
  •  Automatic NMOS Power Source Selection from Adapter or Battery
  • Programmable Input Current, Charge Voltage, Charge and Discharge Current Limit
    • ±0.4% Charge Voltage (16-mV step)
    • ±2% Input Current (128-mA/step)
    • ±2% Charge Current (64-mA/step)
    • ±2% Discharge Current (512-mA/step)
  • High Integration
    • Battery LEARN Function
    • Battery Present Monitor – Boost Mode Indicator
    • Loop Compensation
    • BTST Diode
  • Enhanced Safety Features for Overvoltage Protection, Overcurrent Protection, Battery, Inductor, and MOSFET Short-Circuit Protection
  • Switching Frequency: 600 kHz, 800 kHz, and 1 MHz
  • Realtime System Control on ILIM Pin to Limit Charge and Discharge Current
  • 0.65 mA Adapter Standby Quiescent Current for Energy Star

Datasheet:

http://www.ti.com/lit/ds/symlink/bq24780s.pdf


Category: QFN-28
