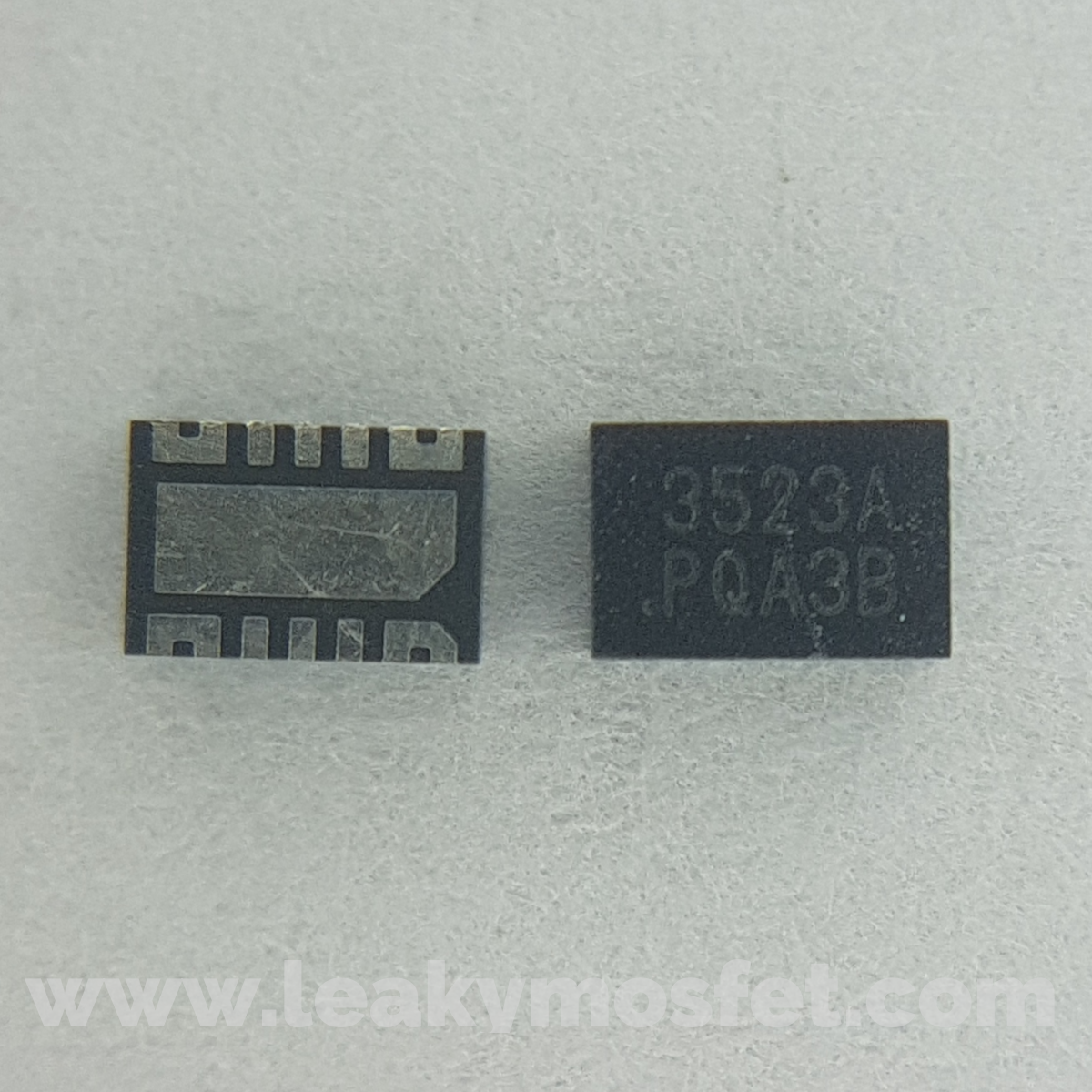

APL3523A Dual MOSFET Power Distribution Switch
The APL3523A is an ultra-low on-resistance, dual powerdistribution switch with external soft start control. It integrates two N-channel MOSFETs that can deliver 6A continuous load current each. The device integrates over-temperature protection. The over temperature protection function shuts down the Nchannel MOSFET power switch when the junction temperature rises beyond 160oC and will automatically turns on the power switch when the temperature drops by 40oC. The device is available in lead free TDFN2x3-14 packages.
16mW(Typical) On-resistance per Channel
· 6A Continuous Current
· Soft Start Time Programmable by External Capacitor
· Wide Input Voltage Range (VIN): 0.8V to 5.5V
· Supply Voltage Range (VBIAS): 3V to 5.5V
· Output Discharge when Switch Disabled
· Reverse Current Blocking when Switch Disabled
· Over-Temperature Protection
· Enable Input
· Lead Free and Green Devices Available (RoHS Compliant)
