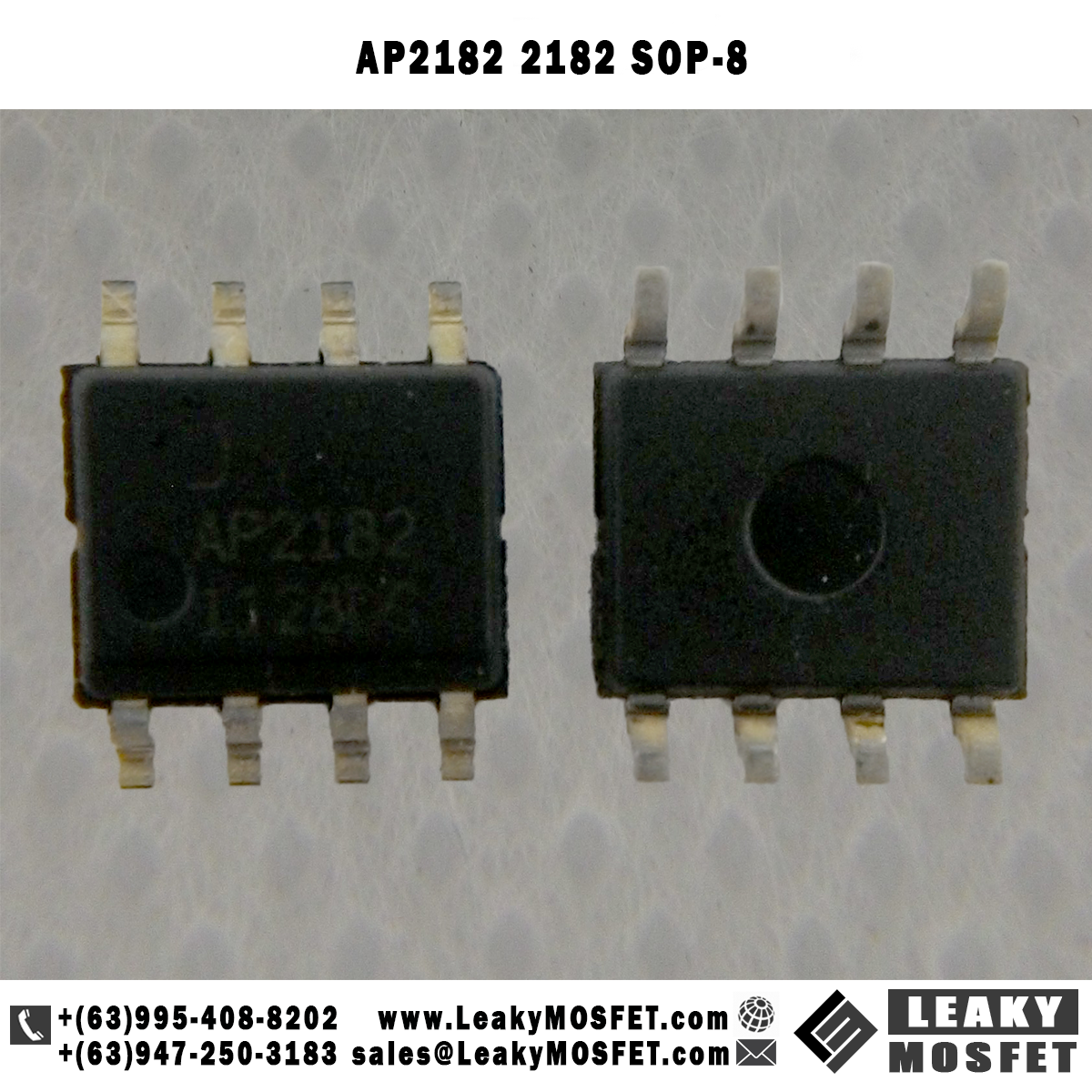

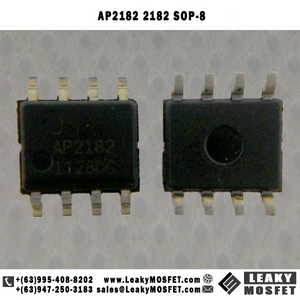

AP2182 2182 SOP-8

Description:

The AP2182 is integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and is available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. All devices are available in SO-8 and MSOP-8EP packages.

Specifications:

  •  Dual USB Port Power Switches
  • Over-Current and Thermal Protection
  • 2.1A Accurate Current Limiting
  • Reverse Current Blocking
  • 115mΩ On-Resistance
  • Input Voltage Range: 2.7V - 5.5V
  • 0.6ms Typical Rise Time
  • Very Low Shutdown Current: 1µA (Max)
  • Fault Report (FLG) with Blanking Time (7ms typ)
  • ESD Protection: 3KV HBM, 300V MM
  • Active High (AP2192) or Active Low (AP2182) Enable
  • Ambient Temperature Range -40°C to +85°C
  • SO-8 and MSOP-8EP (Exposed Pad): Available in ―Green‖ Molding Compound (No Br, Sb)
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • UL Recognized, File Number E322375
  • IEC60950-1 CB Scheme Certified

Datasheet:

https://www.diodes.com/assets/Datasheets/AP2182_92.pdf
