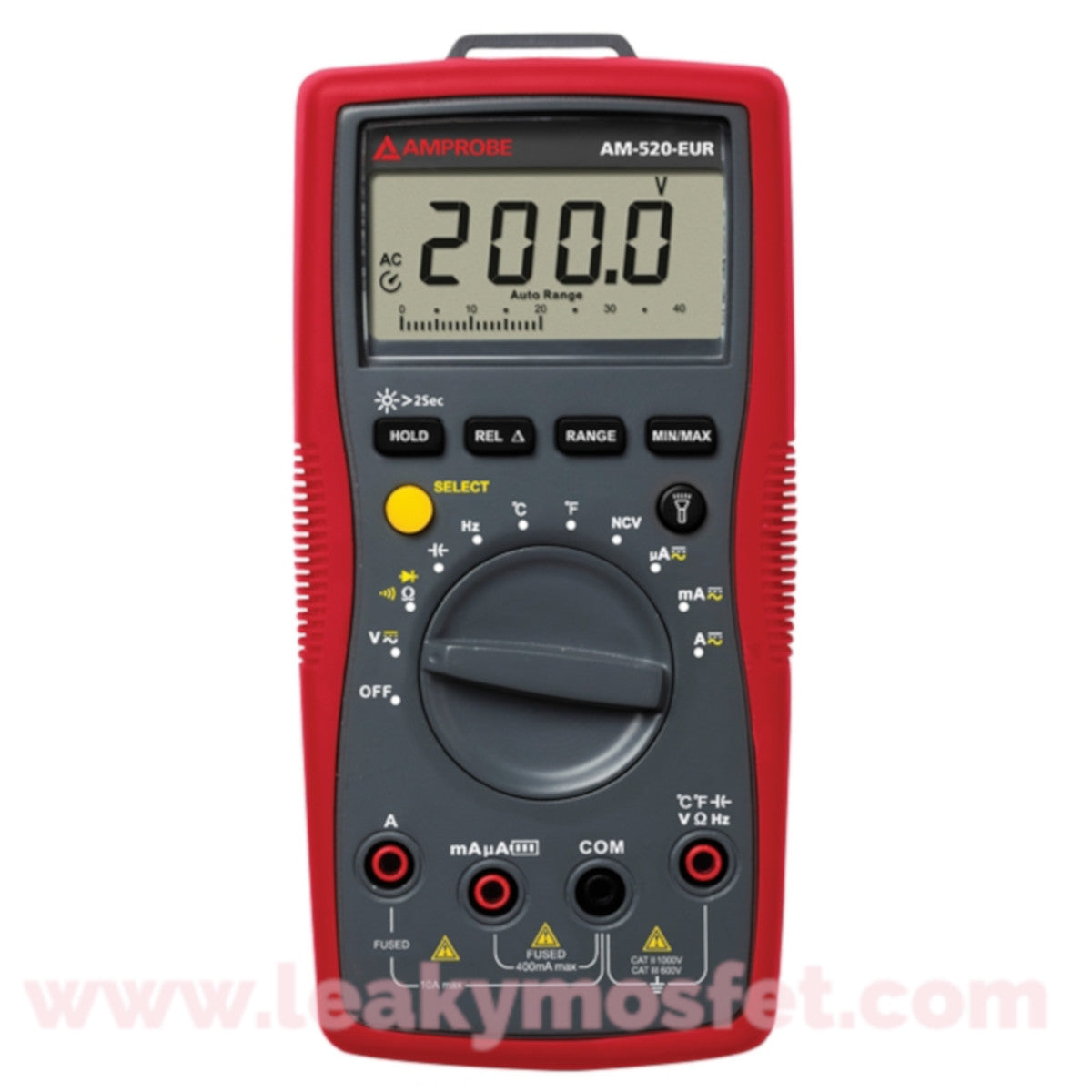

Amprobe AM-520 Digital Multimeter

Designed primarily for HVAC professionals, the AM-520 auto-ranging digital multimeter offers all the most commonly used HVAC digital multimeter features such as temperature, microamps to troubleshoot flame sensors, and capacitance to check motor startup capacitors. With its CAT III safety rating, this high voltage multimeter measures a broad range of electrical parameters. The backlit LCD display makes it easy to read, and it's easy to use with non-contact voltage detection, the “third-hand probe holder, and the built-in flashlight.

Specifications:

  • AC Voltage - 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • DC Voltage - 400 mV, 4.000 V, 40.00 V, 400.0 V, 600 V
  • Resistance - 400.0 Ω, 4.000 kΩ, 40.00 kΩ, 400.0 kΩ, 4.000 MΩ, 40.00 MΩ
  • AC Current - 400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A
  • DC Current - 400.0 μA, 4000 μA, 40.00 mA, 400.0 mA, 4.000 A, 10.00 A
  • Frequency - 10Hz to 10MHz
  • Capacitance - 40.00 nF, 400.0 nF, 4.000 μF, 40.00 μF, 400.0 μF, 4000 μF
  • Temperature - 1-40 °F to 1832 °F, -40 °C to 1000 °C

Package Content:

  • 1 x 9V(6F22) battery installed
  • Test leads
  • 1 x Type-K probe
  • Velcro strap
  • Carrying case and users manual

Datasheet:

https://bit.ly/2D9JoC4
