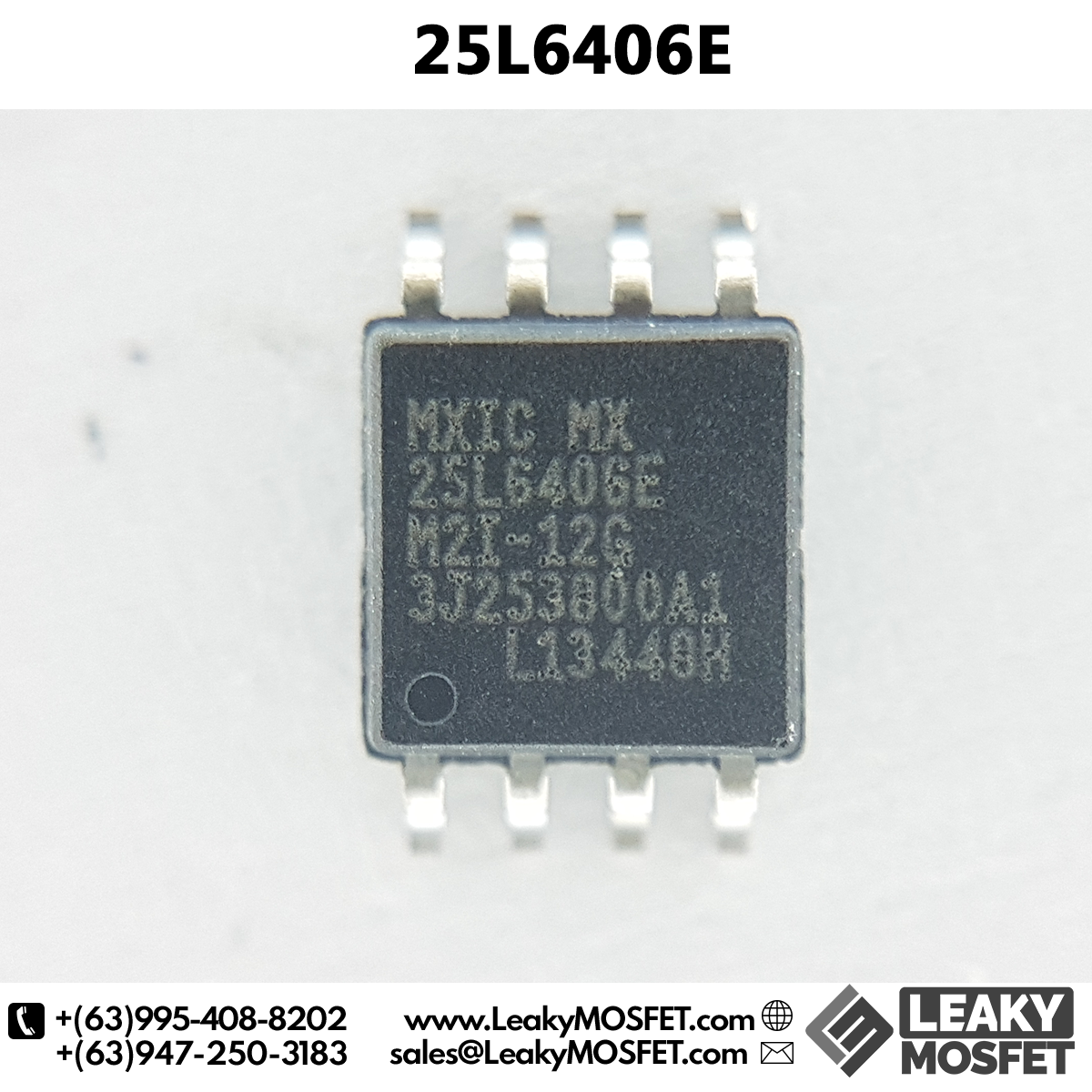

25L6406E 6406E SOP-8

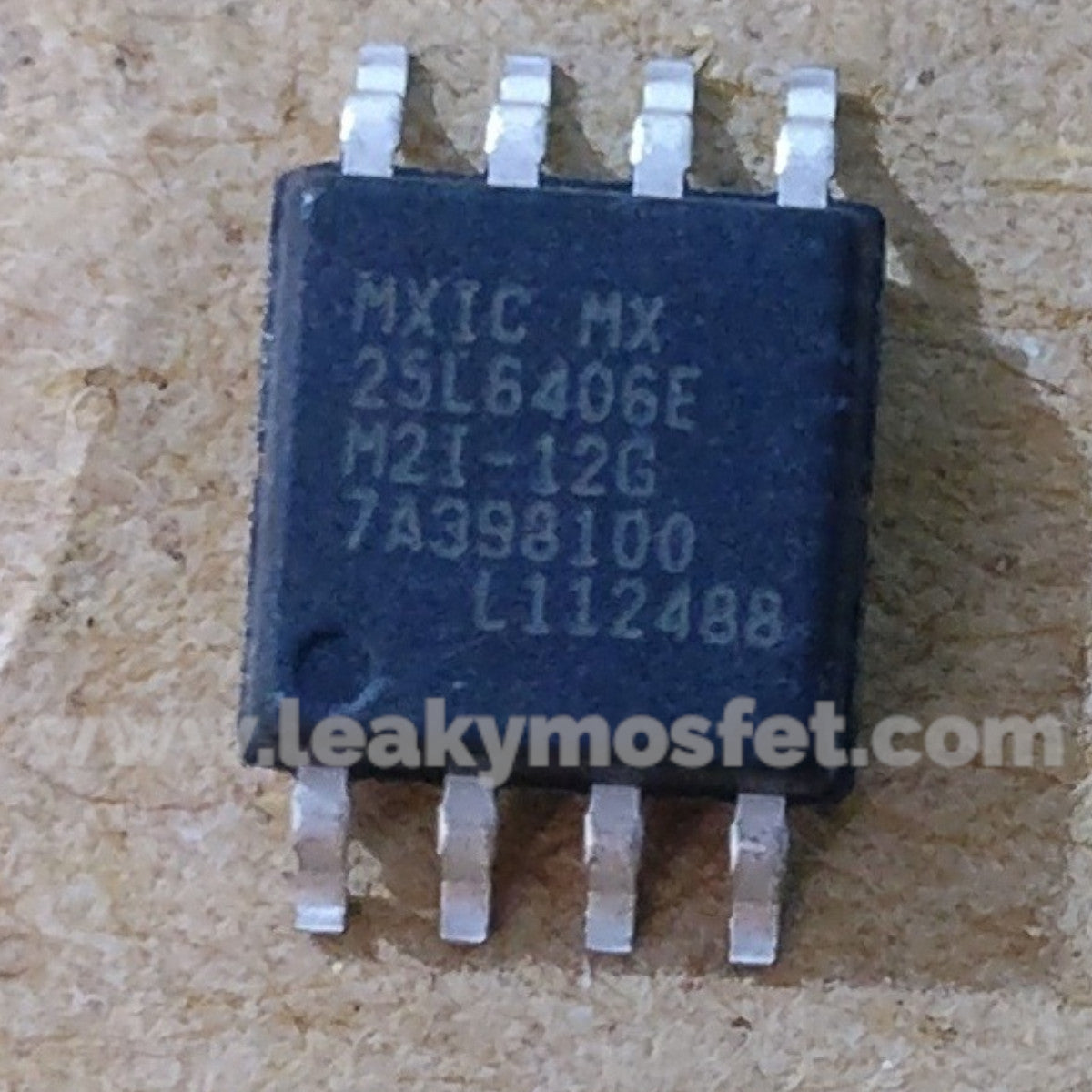

Brand new 25L6406E SOP-8

The device feature a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS# input.

Features:

  • Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations
  • Supports Serial Peripheral Interface -- Mode 0 and Mode 3
  • 67,108,864 x 1 bit structure or 33,554,432 x 2 bits (Dual Output mode) structure
  • 2048 Equal Sectors with 4K byte each - Any Sector can be erased individually
  • 128 Equal Blocks with 64K byte each - Any Block can be erased individually
  • Program Capability - Byte base - Page base (256 bytes)
  • Latch-up protected to 100mA from -1V to Vcc +1V

Datasheet:

https://bit.ly/2JDzOI1
