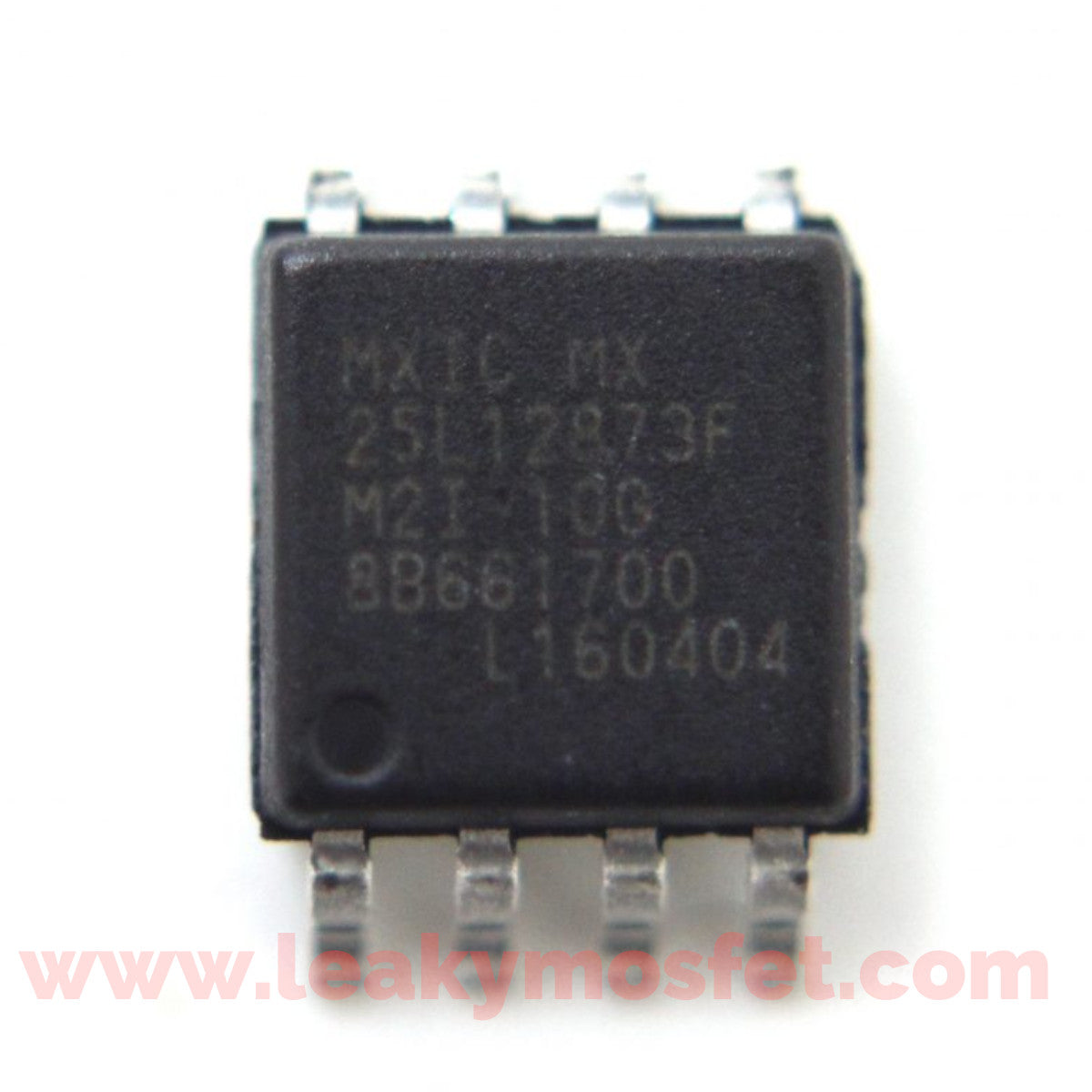

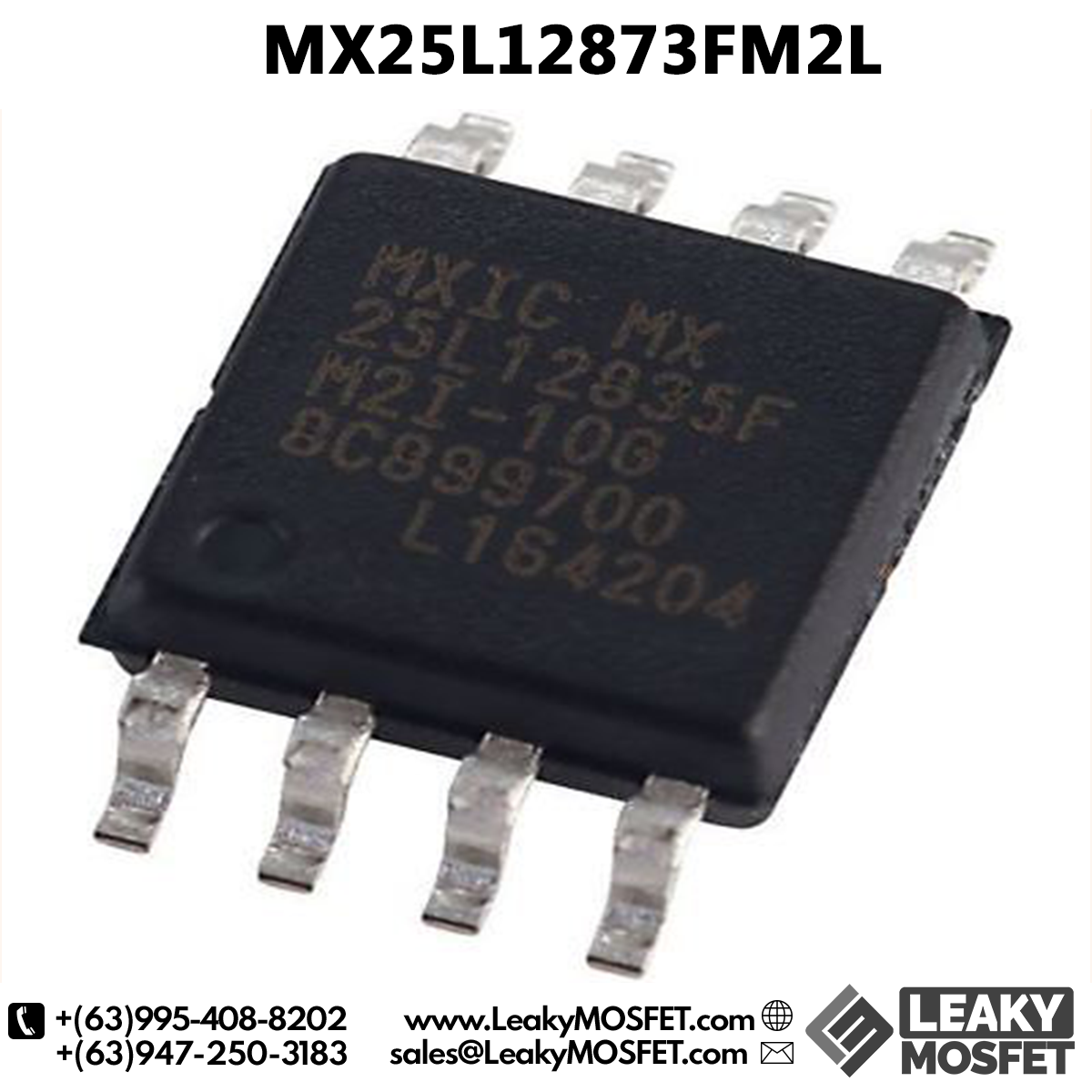

MX25L12873F 12873E SOP-8

Brand new MX25L12873F SOP-8

MX25L12873F is 128Mb bits serial Flash memory, which is configured as 16,777,216 x 8 internally. When it is in two or four I/O mode, the structure becomes 67,108,864 bits x 2 or 33,554,432 bits x 4. MX25L12873F feature a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus while it is in single I/O mode. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS# input.

Features:

• Supports Serial Peripheral Interface -- Mode 0 and Mode 3
• Single Power Supply Operation - 2.7 to 3.6 volt for read, erase, and program operations
• 128Mb: 134,217,728 x 1 bit structure or 67,108,864 x 2 bits (two I/O mode) structure or 33,554,432 x 4 bits (four I/O mode) structure
• Protocol Support - Single I/O, Dual I/O and Quad I/O • Latch-up protected to 100mA from -1V to Vcc +1V
• Fast read for SPI mode - Support clock frequency up to 133MHz for all protocols - Support Fast Read, 2READ, DREAD, 4READ, QREAD instructions. - Configurable dummy cycle number for fast read operation
• Default Quad I/O enable (QE bit=1), and can not be change
• Quad Peripheral Interface (QPI) available
• Equal Sectors with 4K byte each, or Equal Blocks with 32K byte each or Equal Blocks with 64K byte each - Any Block can be erased individually
• Programming : - 256byte page buffer - Quad Input/Output page program(4PP) to enhance program performance
• Typical 100,000 erase/program cycles
• 20 years data retention

Datasheet:

https://bit.ly/2D4rpfx
