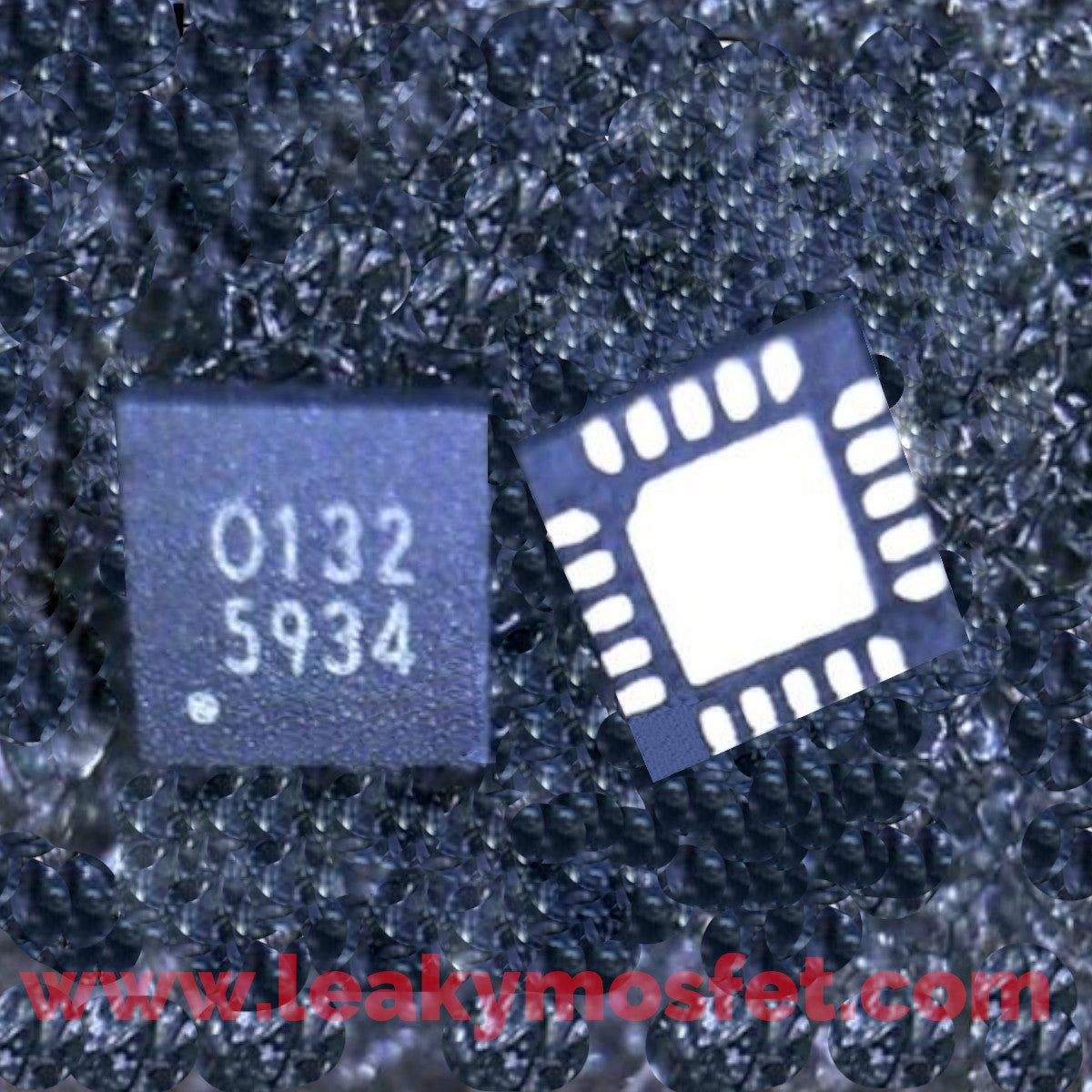

P2806 G5934 QFN-20 Discharge IC
Sold Out
High Voltage 1.5x Charge Pump with Load Switch Controller
The G5934 is a high-voltage switched-capacitor charge pump that provides the regulated output voltage of 1.5x input voltage. Input voltages ranging from 8V to 24V can be converted into a 12V to 36V output supply. The device is ideal for battery-powered conversion applications in notebook computers with a typical operating current of 150µA at 8V supply and 190µA at 24V supply.
Features:
- Input Range: 8V to 24V
- Output Range: 12V to 36V
- 150µA Quiescent Current at 8V Supply Voltage and 190µA Quiescent Current at 24V Supply Voltage
- ±3% Regulated Output
- Power Good Function
- Power Good of Open Drain (Monitor AC VIN Only)
- Embedded a 12-V LDO 4 Control Signal Inputs
- 4 12V-Drivers for external NMOS switches
- 4 Discharging Networks for 22Ω
- Over-Temperature Protection
- Output Short Circuit Protection
- TQFN3X3-20 Package
Datasheet:
https://bit.ly/2RKEgrm
Tags:
2806 5934 7502
